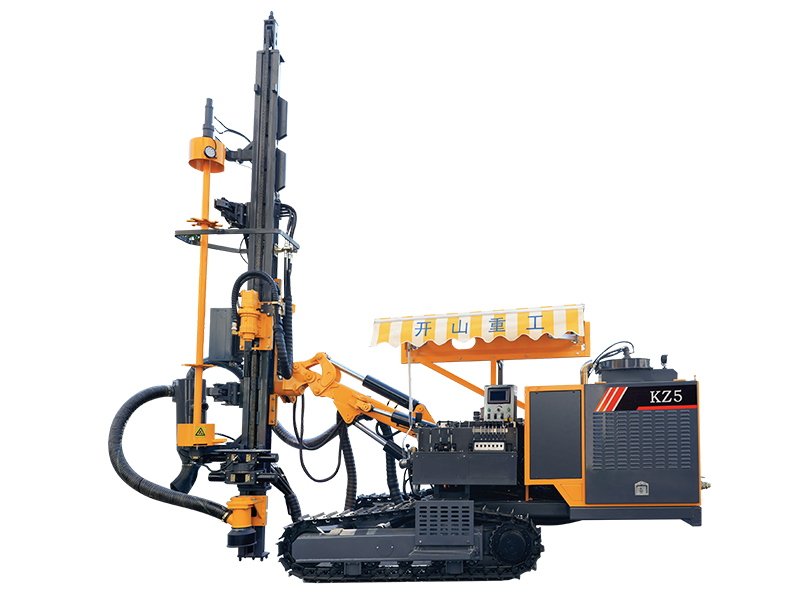

KZ5 /KZ9 Surface DTH Drilling Rig

KZ5 /KZ9 Surface DTH Drilling Rig
Inquiry

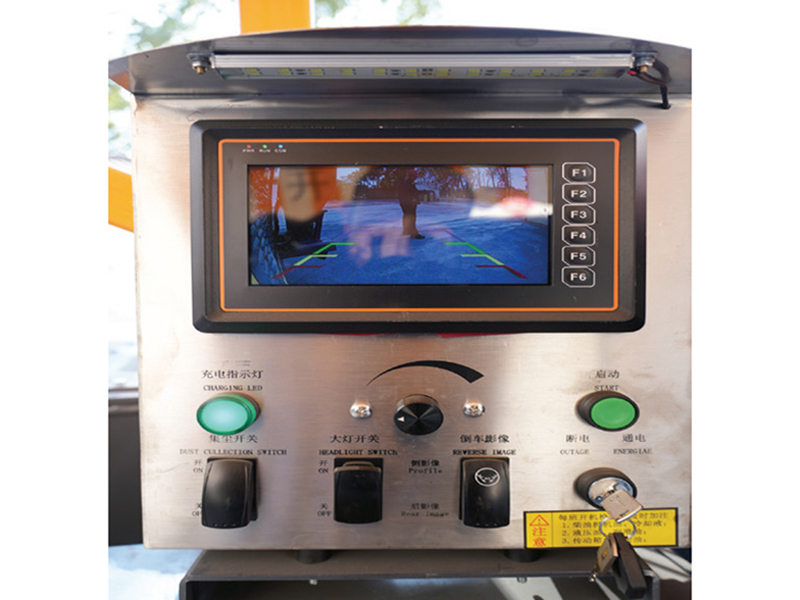

The surface DTH drilling rig is an advanced drilling solution that integrates the DTH drilling system with an automatic rod-handling system. The rig features a compact structure, strong integrity, and high mobility. It is equipped with a protective canopy and a rear-view monitoring system, improving operational safety and comfort during both drilling and relocation.
All movements, including traveling, feeding, rotating, dust collection, and angle adjustment, are hydraulically driven, providing strong climbing capability and stable performance. A hydraulic dry-type dust collection system effectively reduces environmental pollution.
The drilling rig delivers energy efficiency, environmental protection, high mobility, convenient operation, and stable performance. It is equipped with a hydraulic rod unloading mechanism for drill rod removal, along with a rod-handling device to reduce labor intensity. The rig is mainly used for rock drilling in quarrying projects and open-pit mining.

Detail features

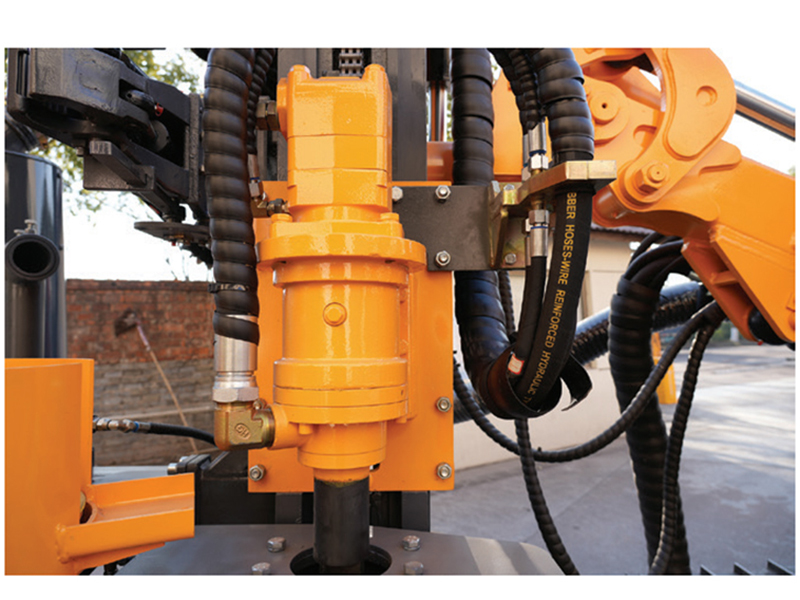

  • High torque gyrator

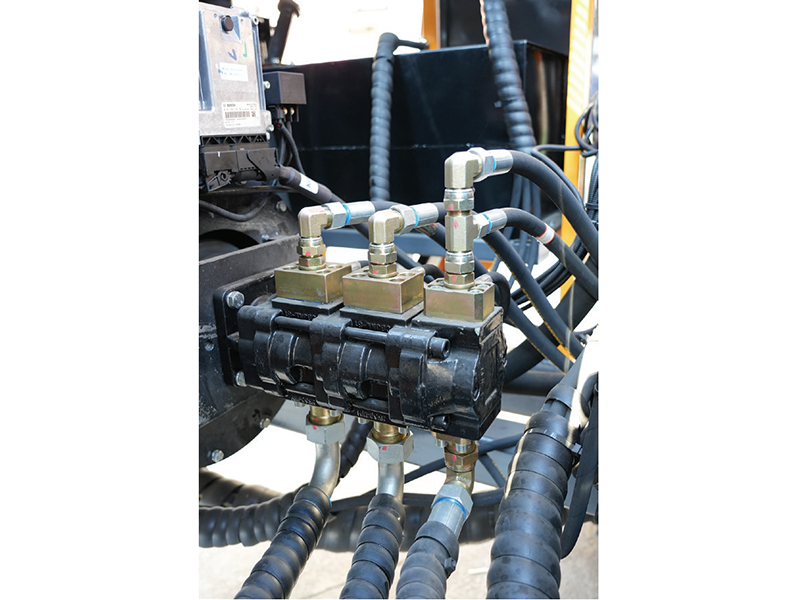

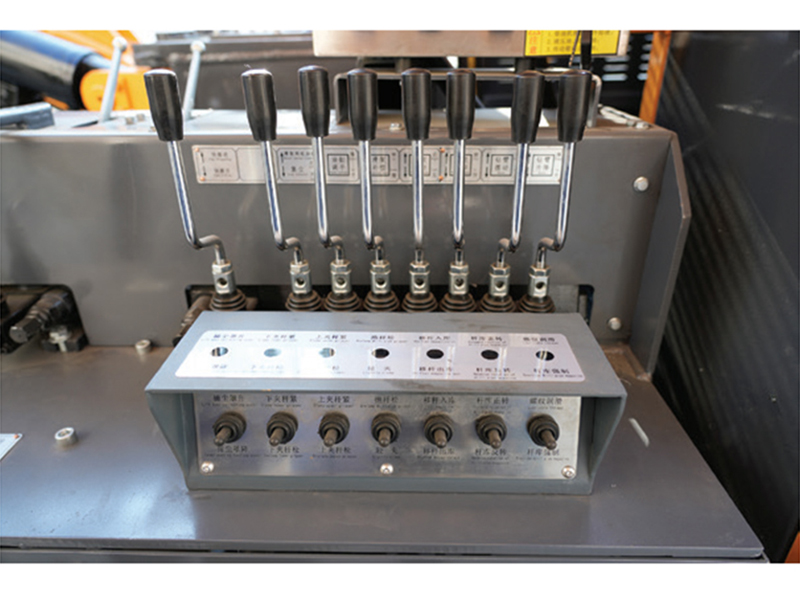

  • Stable hydraulic system
  • Steel track adaptable to all terrains

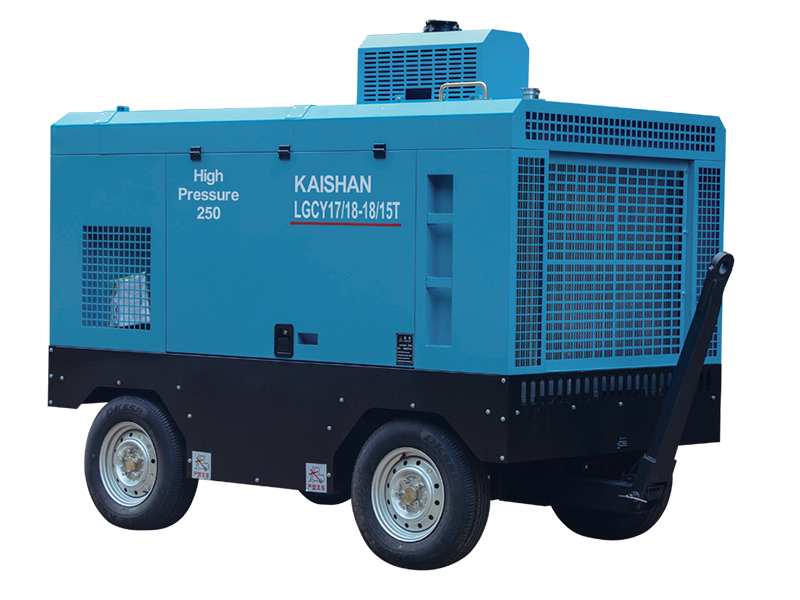

  • 1Air Compressors
  • 1Air Compressors
Technical Parameters
Model No. KZ5 KZ9
Drilling hardness f=6-20 f=6-20
Drilling diameter Ø90-115 mm Ø115-165 mm
Economical drilling depth 21 m 21 m
Travelling speed 0-3.0 km/h 0-3.0 km/h
Climbing capacity ≤30° ≤30°
Ground clearance 330 mm 330 mm
Rated power 73.5 kW 86 kW
Diesel engine Yuchai YC4DK100-T304 Yuchai YC4DK115-T302
Dimensions (L×W×H) 7300×2345×2700 mm 7550×2550×3100 mm
Weight 7900 kg 9300 kg
Rotary speed 0~180 rpm 0~80(0~160) rpm
Rotary torque 1500 N·m 4000 N·m
Max. feed force 30000 N 30000 N
Lifting angle of drill boom Up 48°, down 16° Up 50°, down 20°
Tilt angle of beam 147° 120°
Swing angle of carriage Left 52°, right 53° Left 47°, right 48°
Swing angle of drill boom Left 40°, right 38° Left 59°, right 48°
Leveling angle of frame Up 10°, down 10° Up 10°, down 10°
Single feed stroke 3500 mm 3500 mm
Compensation stroke 900 mm 900 mm
DTH hammer 3" 4"/5"
Drilling rod (diameter × length) Ø64×3000 mm Ø76(Ø89)×3000 mm
Rod storage capacity 7+1 7+1
Dust collection method Dry (hydraulic cyclonic laminar flow), 8 filter elements Dry (hydraulic cyclonic laminar flow) 16 filter elements
Rod handling method Automatic unloading rod Automatic unloading rod
Drill rod lubrication method Automatic oil injection and lubrication Automatic oil injection and lubrication
