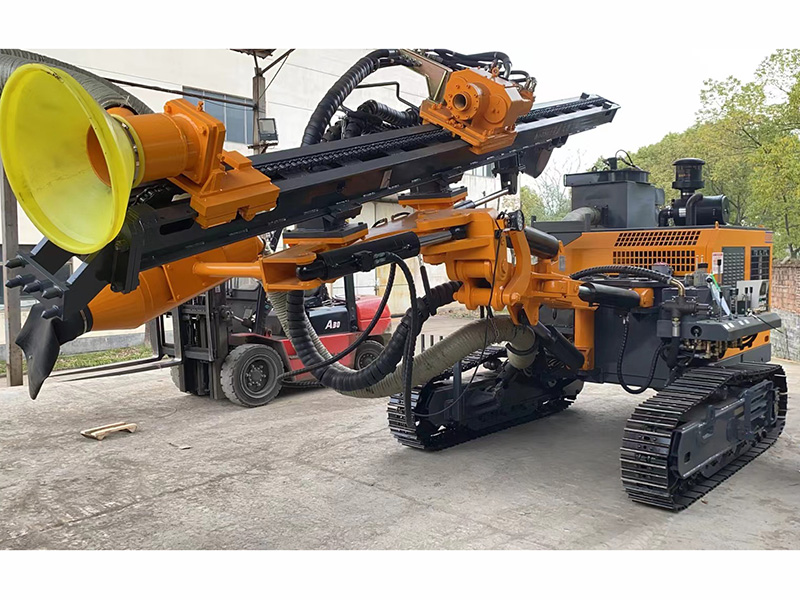

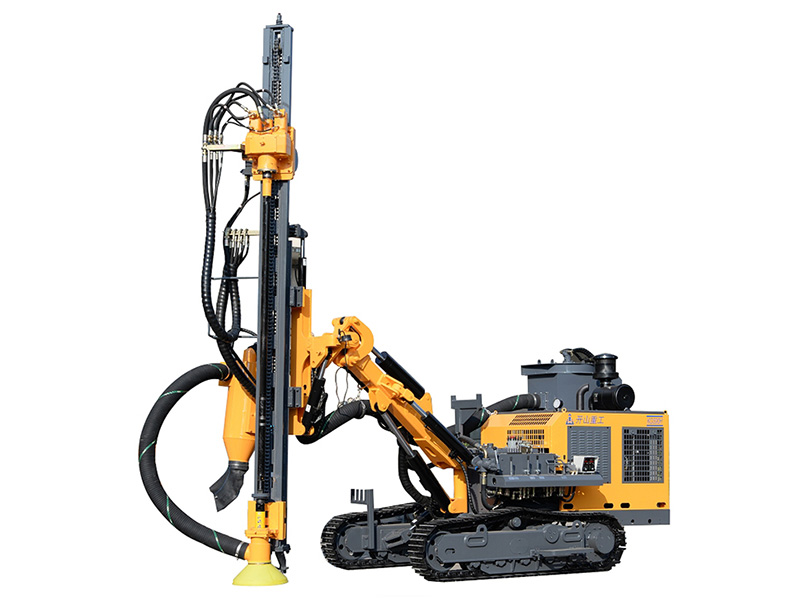

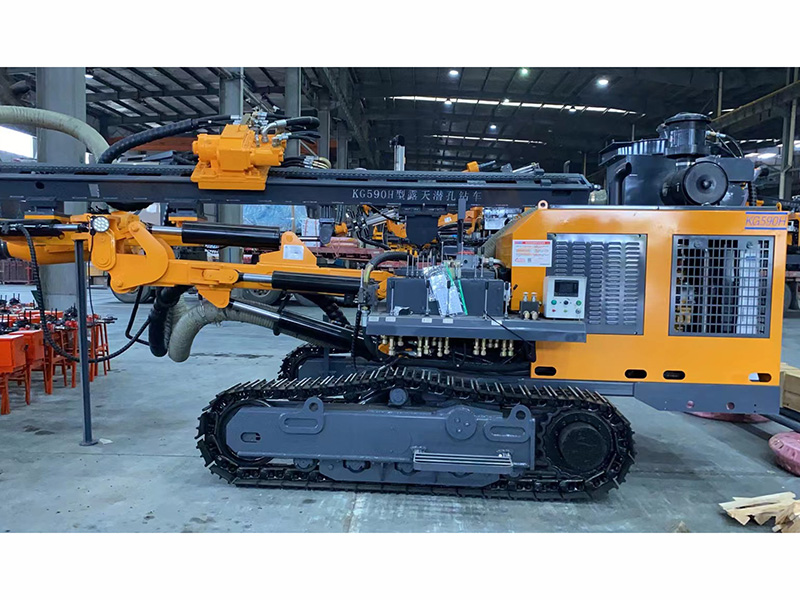

KG590/KG590H DTH Drilling Rig for Open Use
The DTH drilling rig for open use has been upgraded to meet national diesel engine emission standards. It is equipped with a Yuchai four-cylinder National Stage III engine, ensuring compliance with environmental and emission requirements. The rig features a folded crawler frame and engineering-grade four-wheel undercarriage, along with crawler leveling and plunger walking motors, enhancing working pressure and climbing performance. Enlarged pitching and boom lift cylinders ensure reliable operation under extreme positioning requirements, while increased rotary torque and speed improve efficiency. The propulsion motor and chain-driven feed system enhance lifting power and reliability. An upgraded dust collector improves dust removal efficiency, making the rig more environmentally friendly and reliable during operation. The thickened folded profile of the outer shell enhances structural strength and rigidity, while added lifting rings simplify loading and unloading.
Key Parameters
Drilling Diameter: Ø105-152mm
Economical Drilling Depth: 25m
Feed Method: motor and chain
Feed Distance: 4150mm
Engine: Yuchai YC4DK100-T304 (73kW/2200r/min)
| Model | ||
| Weight | 7000kg | 7200kg |
| Dimensions | 7100×2300×2700mm | 7100×2500×2700mm |
| Drilling hardness | f=6-20 | |
| Drilling diameter | Ø105-152mm | |
| Economical drilling depth | 25m | |
| Rotation speed | 0-100rpm | |
| Rotation torque | 5000N·m (max) | |
| Lifting force | 25KN | |
| Feed method | Motor+chain | |
| Feed distance | 4150mm | |
| Travelling speed | 0-3.5km/h | |
| Gradeability | ≤30° | |
| Ground clearance | 440mm | |
| Tilt angle of feed beam | Down 135°, up 50°, total 185° | |
| Swing angle of feed beam | Left 50°, right 50°, total 100° | |
| Pitch angle of drill boom | Down 50°, up 25°, total 75° | |
| Swing angle of drill boom | Left 45°, right 45°, total 90° | |
| Leveling angle of crawler track | ±10° | |
| Compensation length of feed beam | 900mm | |
| Engine | Yuchai YC4DK100-T304 (73kW/2200r/min） | |
| DTH hammer | K40 | |
| Drill pipe | Ø76×3m/Ø76×3m | |
| Air consumption | 15-22m³/min | |
| Max. height of horizontal hole | 3500mm | |
| Min. height of horizontal hole | 350mm | |
