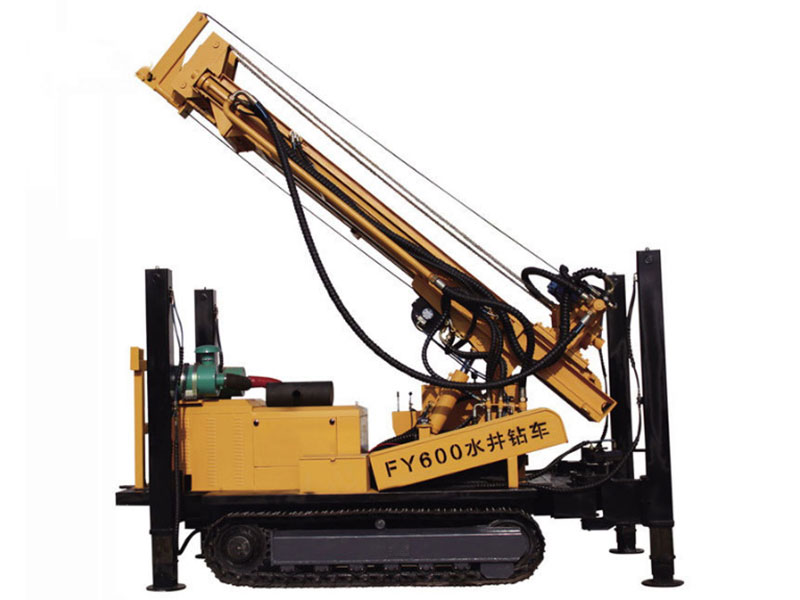

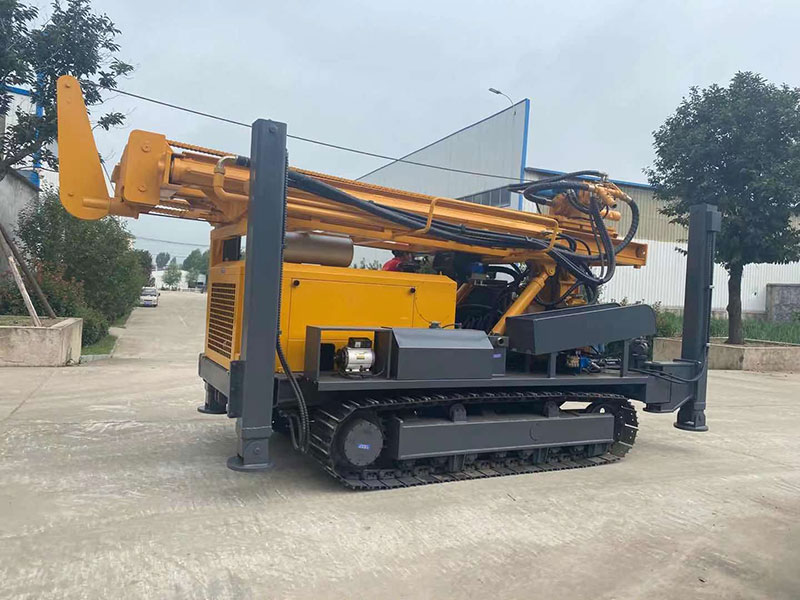

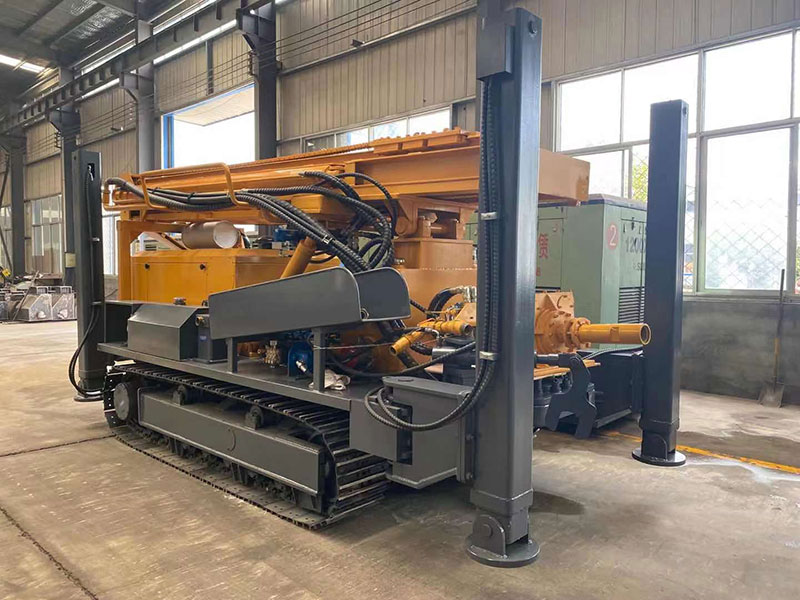

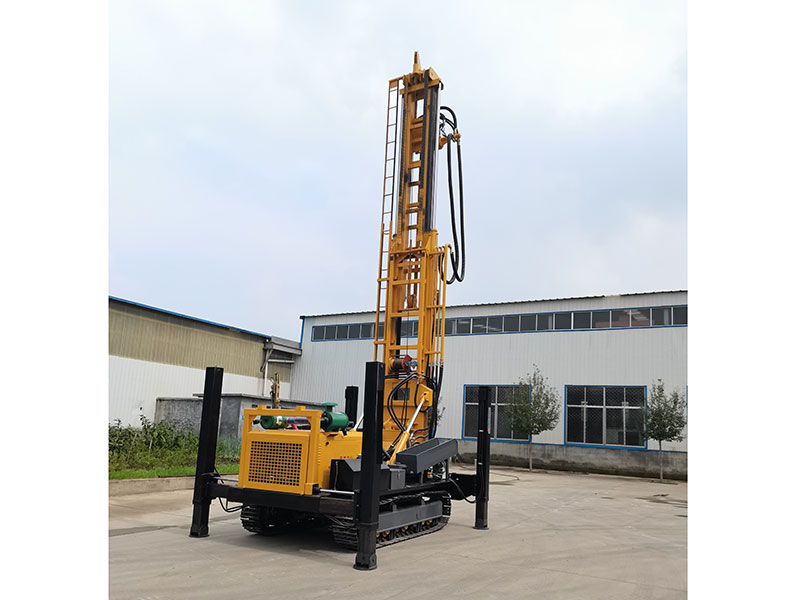

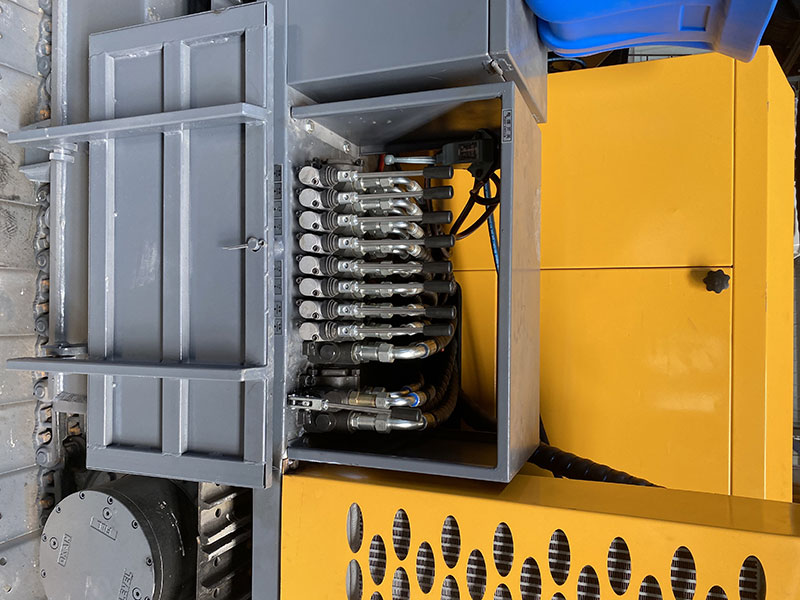

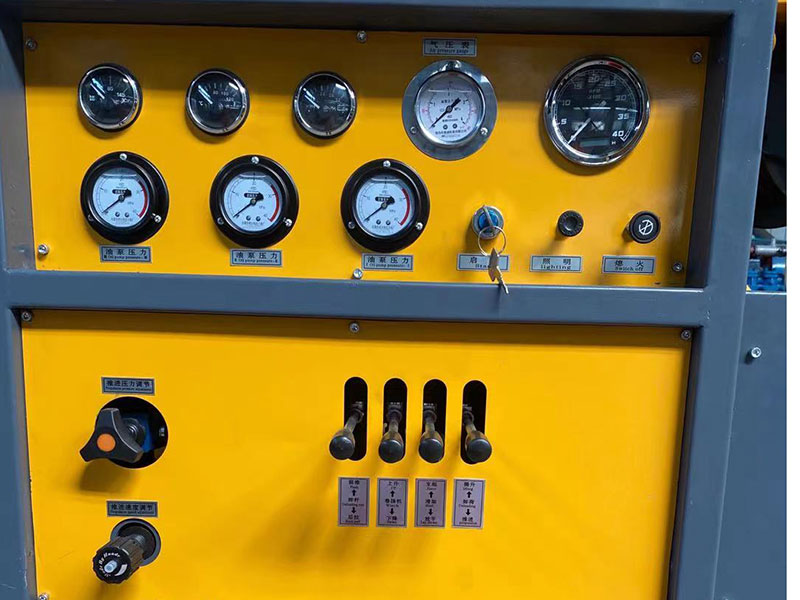

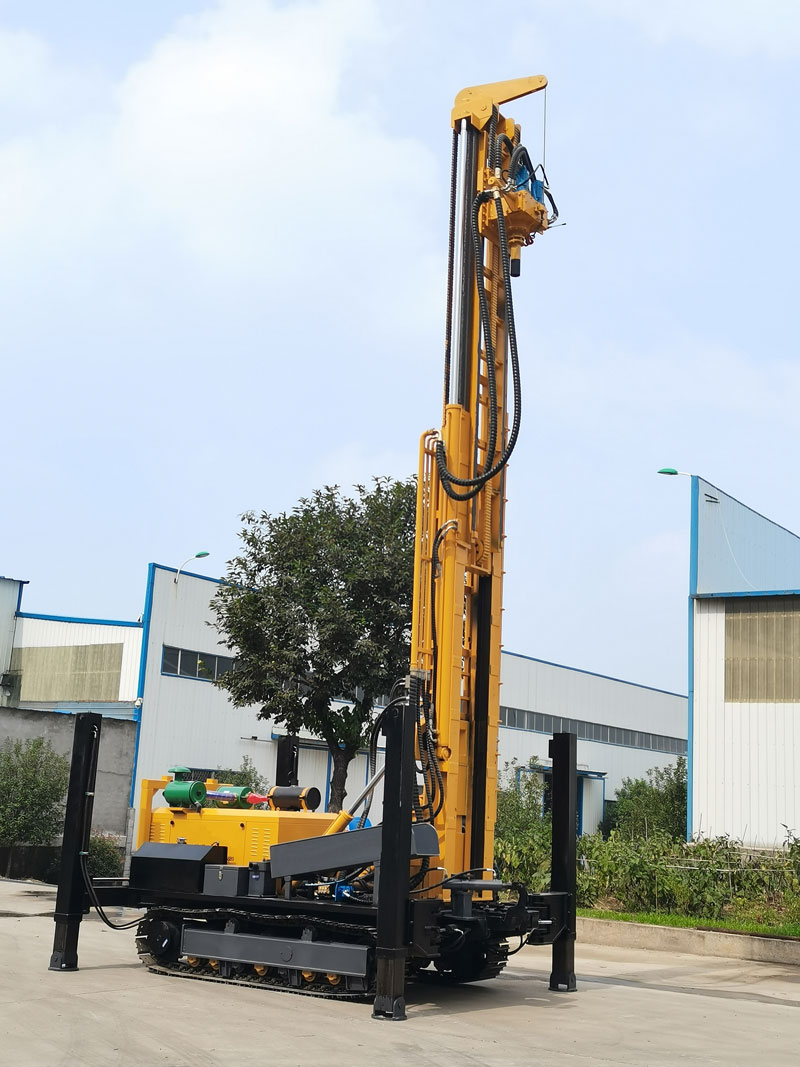

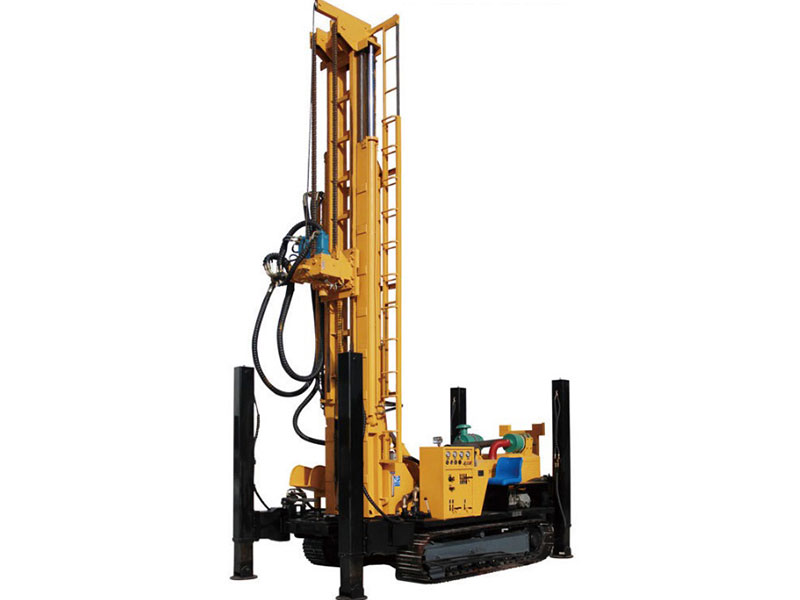

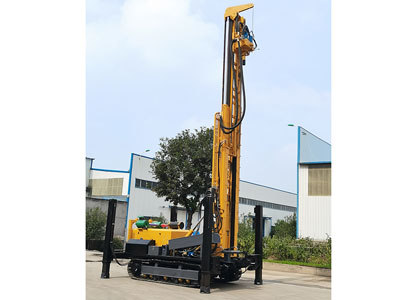

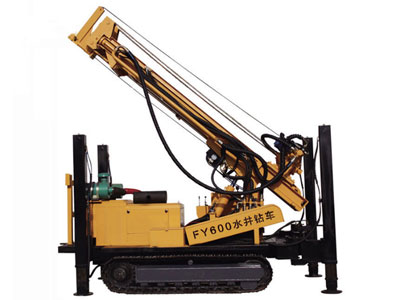

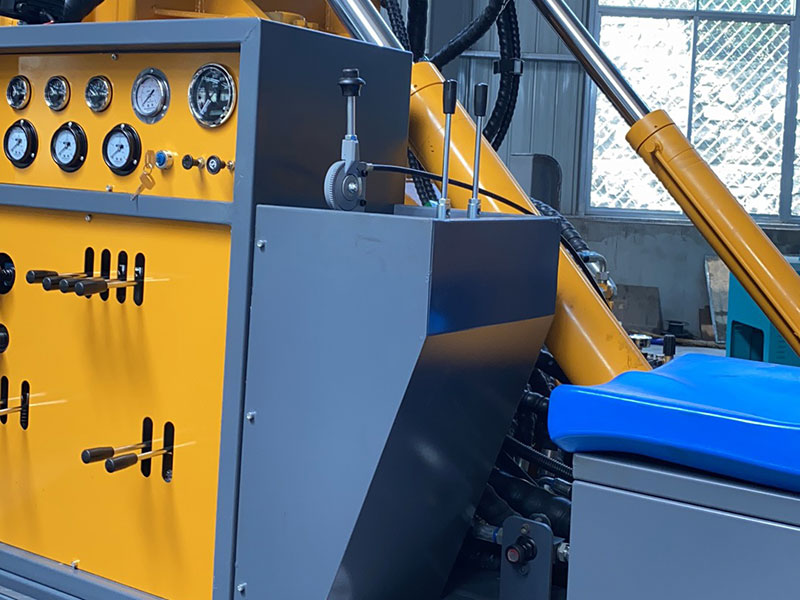

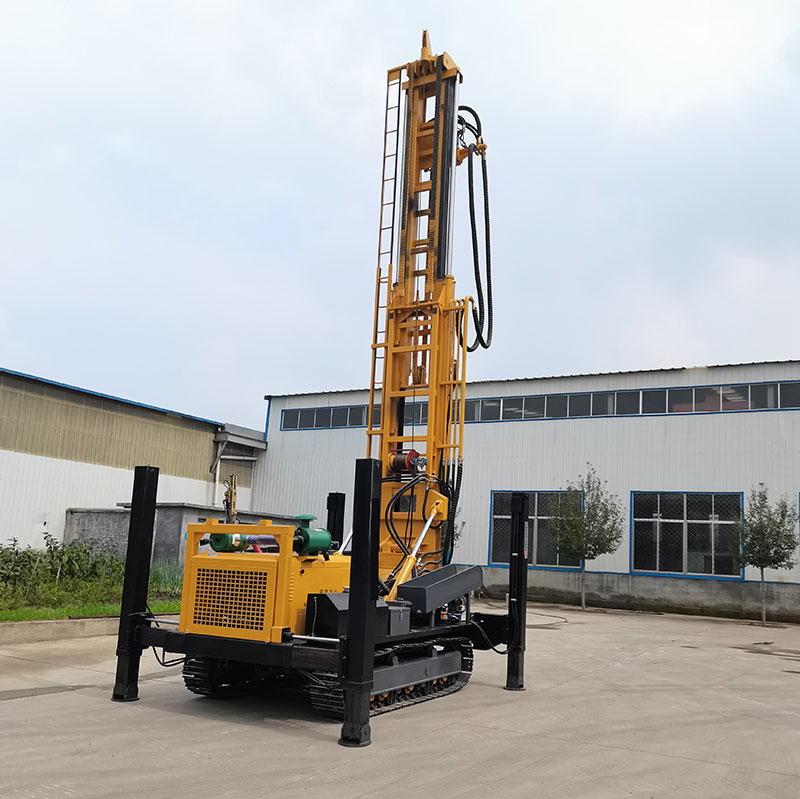

The KW600 multipurpose geothermal water well drilling rig is mainly suitable for drilling of water well, ground source heat pump well and others. The drilling rig can be applied at different stratum. The drilling diameter is large and the max well depth can be up to 600m. The drilling rig adopts two stage telescopic carriage and 4.5m drill pipe to reduce pipe extension.
Drilling diameter ：Φ168-350mm
Depth of economical drilling ：450m
Method of Feed：Oil cylinder-leaf chain
Feed stroke: 4440mm
Supporting power：Yuchai YC4A150-T300
|Maximum drilling depth||450 m|
|Dia. hole||φ130-350 mm|
|Working pressure||1.05-3.45 Mpa|
|Air consumption||16-76.4 m3/min|
|Length of rod||3000 m|
|Dia. Of rod||φ114/φ102/φ89 mm|
|Propeller Shaft Stress||0~7.5 t|
|Lifting power||15.3 t|
|Pulling Force of Landing Leg Cylinder||62t（4 pieces）|
|Stroke of Landing Leg Oil Cylinder||1.4 m|
|Sliding Plate Stroke||4440 mm|
|Slow Lifting Speed||3.3 m/min|
|Slow Pushing Speed||0~6.7 m/min|
|Fast Lifting Speed||24.1 m/min|
|Fast Pushing Speed||49 m/min|
|Rotation torque||8600(4300) Nm|
|Rotation Speed||38~61 (76~120) r/min|
|Lifting capacity of winch||1t|

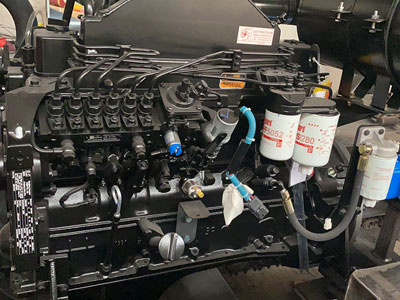

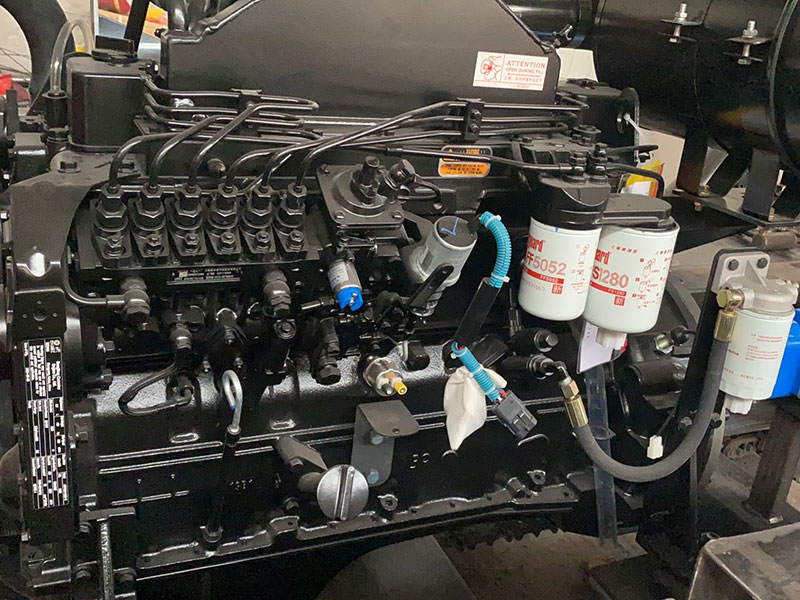

|Diesel Engine model||YC6B150Z-T21|
|Engine Power||110Kw/2100 rpm|
|Travelling speed||0~2 r/min|
|Application||Unconsolidated formation and bedrock|
|Drilling Way||Top drive hydraulic rotary and propulsion, down hole hammer or mud drilling|
|Dth Hammer||Down hole hammer with high and medium wind pressure|
1. Dual rotary motor
The KW600 multipurpose geothermal water well drilling rig adopts two straight gear reducer driven by hydraulic motor from international famous brand with simple structure and reliable performance.
2. Combined positioner
The rig adopts combined positioner. To ensure accurate positioning, the positioning parts can be adjusted and changed according to the types of drill pipe and downhole hammer.
3. Longhole axial compression control system
The unique longhole axial compression control system can adjust the propulsion reasonably, reduce the steering resistance during deep well drilling and improve drilling efficiency.

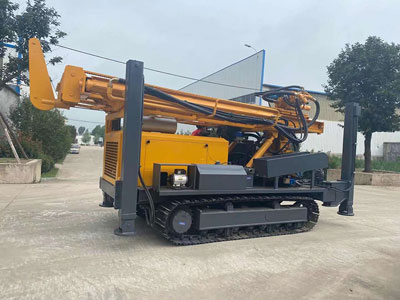

4. Two stage telescopic carriage
By adopting the two stage telescopic carriage, the drill pipe adopted can be 4.5m without extension of the carriage length. And the times of pipe extension can be reduced and the working efficiency can be improved.
