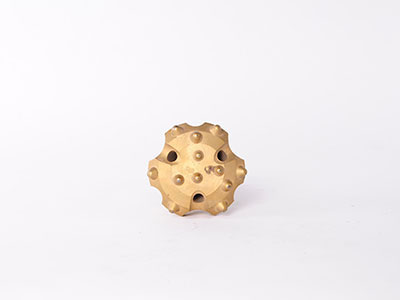

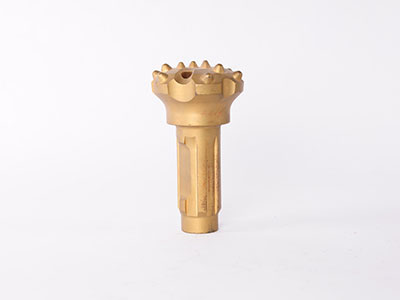

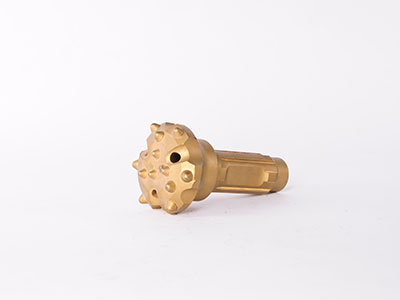

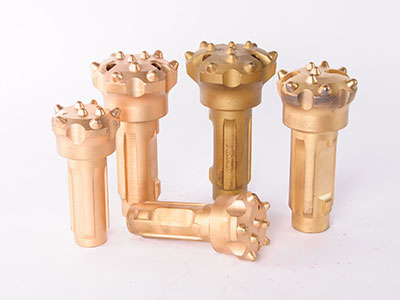

FrançaisLow Air Pressure DTH Bit
CIR70
| CIR70 | Diameter | Gauge button | Weight | Part number |
Ballistic button/ flat face |
76mm | 5X12 | 2.18kg | CIR76-76BF |
CIR90
| CIR90 | Diameter | Gauge button | Weight | Part number |
Ballistic button/ convex face |
90mm | 6X14 | 3.69kg | CIR90-90BC |
| 100mm | 6X14 | 4.25kg | CIR90-100BC | |
| 110mm | 6X14 | 4.92kg | CIR90-110BC | |
| 120mm | 6X14 | 5.52kg | CIR90-120BC | |
| 130mm | 6X14 | 6.56kg | CIR90-130BC |
CIR110
| CIR110 | Diameter | Gauge button | Weight | Part number |
Ballistic button/ convex face |
110mm | 6X14 | 5.86kg | CIR110-110BC |
| 120mm | 6X14 | 5.89kg | CIR110-120BC | |
| 130mm | 7X14 | 7.59kg | CIR110-130BC | |
| 140mm | 8X14 | 8.47kg | CIR110-140BC | |
| 150mm | 8X14 | 9.47kg | CIR110-150BC | |
| 170mm | 9X14 | 11.44kg | CIR110-170BC | |
Ballistic button/ flat face  |
110mm | 6X14 | 5.86kg | CIR110-110BF |
| 120mm | 6X14 | 5.89kg | CIR110-120BF | |
| 130mm | 7X14 | 7.59kg | CIR110-130BF | |
| 140mm | 8X14 | 8.47kg | CIR110-140BF | |
| 150mm | 8X14 | 9.47kg | CIR110-150BF | |
| 170mm | 9X14 | 11.44kg | CIR110-170BF |
CIR130
| CIR130 (Shank 65mm and 76mm) | Diameter | Gauge button | Weight | Part number |
Ballistic button/ convex face  |
130mm | 7X14 | 7.59kg | CIR130-130BC |
| 140mm | 8X14 | 8.47kg | CIR130-140BC | |
| 150mm | 8X14 | 9.47kg | CIR130-150BC | |
| 170mm | 9X14 | 11.44kg | CIR130-170BC | |
Ballistic button/ flat face  |
130mm | 7X14 | 7.59kg | CIR110-130BF |
| 140mm | 8X14 | 8.47kg | CIR110-140BF | |
| 150mm | 8X14 | 9.47kg | CIR110-150BF | |
| 170mm | 9X14 | 11.44kg | CIR110-170BF |
CIR150
| CIR150 | Diameter | Gauge button | Weight | Part number |
Ballistic button/ flat face |
130mm | 9X16 | 15.73kg | CIR150-150BF |
| 140mm | 9X16 | 17.46kg | CIR150-165BF | |
| 150mm | 9X16 | 18.04kg | CIR150-175BF | |
| 170mm | 9X16 | 26.7kg | CIR150-200BF |
CIR170
| CIR170 | Diameter | Gauge button | Weight | Part number |
Ballistic button/ flat face  |
175mm | 9X16 | 21.86kg | CIR170-175BF |
| 185mm | 9X16 | 23kg | CIR170-185BF | |
| 200mm | 11X16 | 25.86kg | CIR170-200BF | |
| 220mm | 12X16 | 30.5kg | CIR170-220BF | |
| 250mm | 15X16 | 38kg | CIR170-250BF |
