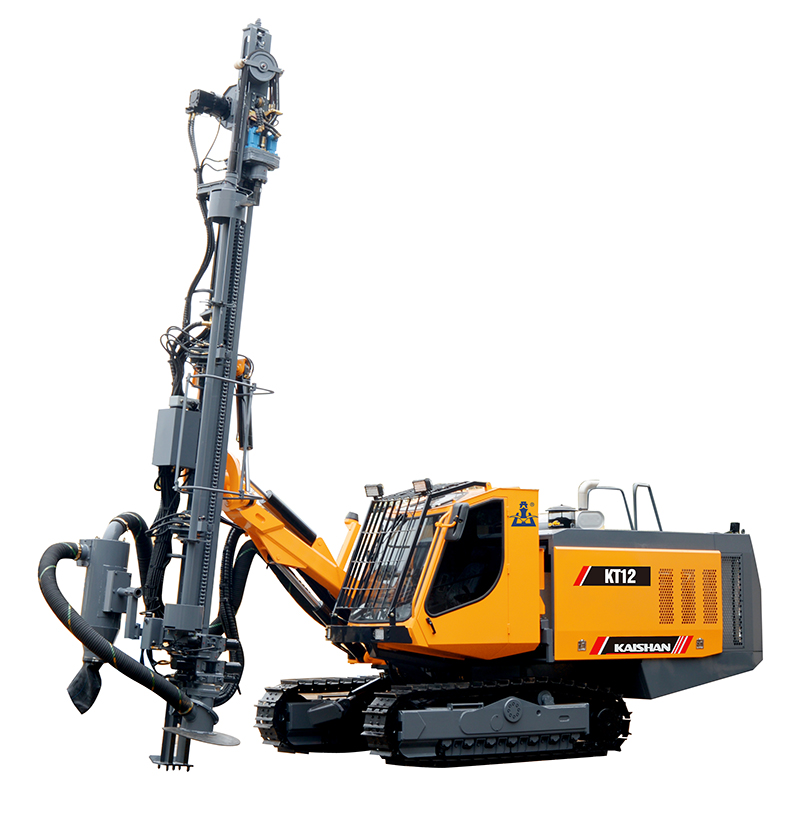

KT12 Integrated Down the hole Drill Rig

KT12 Integrated Down the hole Drill Rig

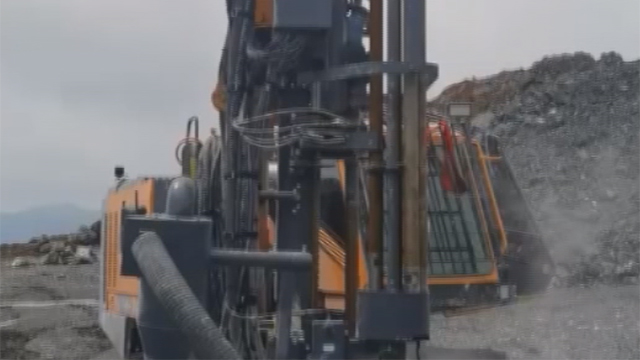

KT12 down-the-hole drilling rig was used for mining in Kazakhstan in 2022

Inquiry

The KT12 integrated down the hole drill rig is driven by a Cummins China stage III diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system. It is capable of drilling φ115-152mm vertical, inclined, and horizontal holes. The rig is most commonly used for open-pit mines, stonework blast holes, and pre-splitting holes. The drill rig is equipped with an automatic rod handling system and lubricating module of the drilling rod, meaning only one operator is needed and fewer mining operations are required. The main control action is integrated into one handle for greater user-friendliness. It is equipped with an anti-jamming system and optional drilling angle and depth indication are available, thus simplifying drilling and improving the drilling quality. The efficient dust-collecting system, spacious cab, high-powere dair-conditioner and quality stereo system provide comfortable conditions for operators.

Technical Parameters
Transport dimensions (L×W×H) 9100*2450*3200 mm
Weight 15000Kg
Rock hardness f=6-20
Drilling diameter 115-152mm
Ground clearance 420mm
Leveling angle of track 10°up, 10°down
Travelling speed 0-3Km/h
Climbing capacity 25°
Traction 120KN
Torque 3200Nm
Rotation speed 0-100rpm
Lifting angle of drill boom Up 47°, down 20°
Swing angle of drill boom Right 50°, left 21°
Swing angle of carriage Right 95°, left 35°
Tilt angle of beam 114°
Compensation stroke 1353mm
Feed stroke 4490mm
Maximum propelling force 25KN
Method of propulsion Roller chain
Depth of economical drilling 28m
Number of rods 6+1
Specifications of drilling rod Φ89x4000 mm
DTH hammer K4、K5
Engine QSL8.9-C360-30 /Cummins QSL8.9-C360-30
Number of cylinders 6
Output power 265KW/2200rpm
Hydraulic pump 5× gear pump
Air Compressor zhejiang Kaishan
Air capacity 19m³/min
Air pressure 19.5Bar
Traveling control system Hydraulic pilot
Drilling control system Hydraulic pilot
Anti-Jamming Automatic electro-hydraulic anti-Jamming
Voltage 24V, DC
Safe cab Meet the requirements of FOPS & ROPS
Indoor noise Below 85dB(A)
Seat Adjustable
Air-conditioning Standard temperature
Entertainment Radio +Mp3
Detail

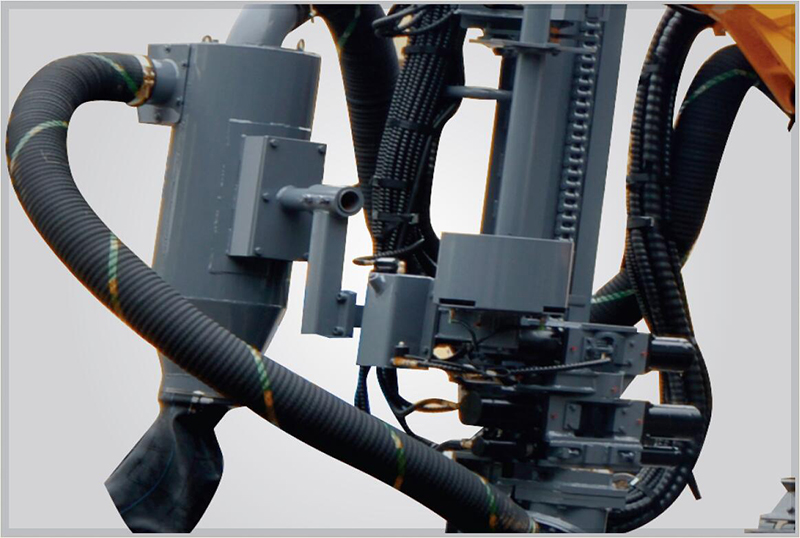

  • High Efficient Dust Collecting System
    High Efficient Dust Collecting System
  • Good hydraulic system
    Good hydraulic system

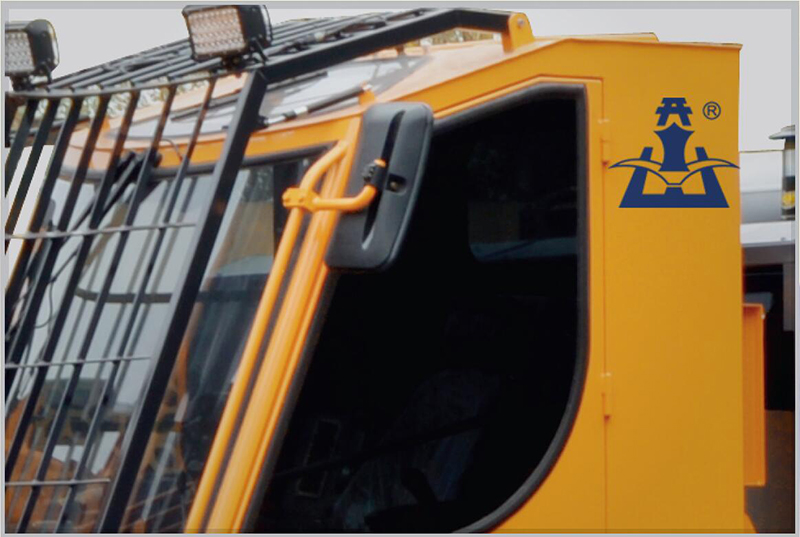

  • Safe & Comfortable Cab
    Safe & Comfortable Cab

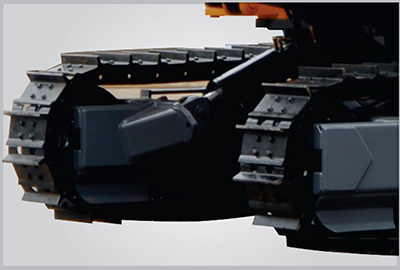

  • High Quality Walking Track
    High Quality Walking Track
