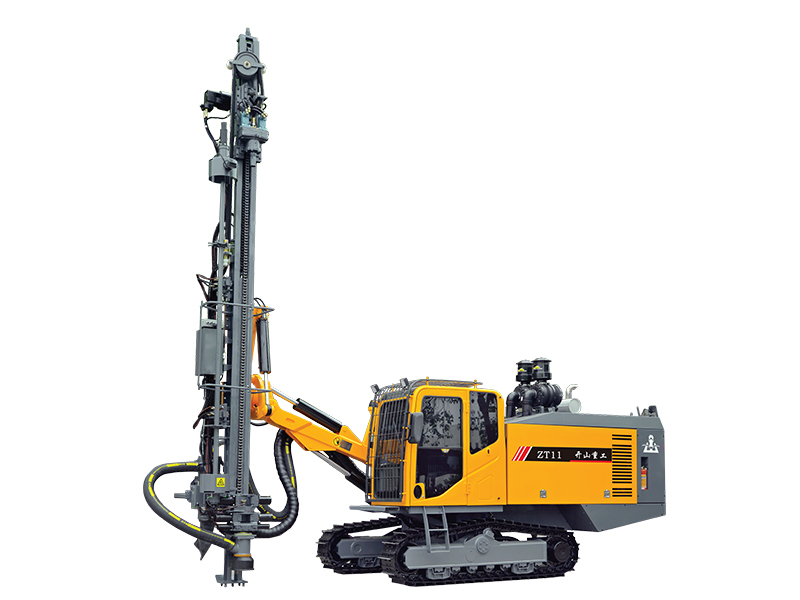

- ZT11/ZT12 Integrated Surface DTH Drilling Rig
ZT11/ZT12 Integrated Surface DTH Drilling Rig
The integrated surface DTH drilling rig is capable of drilling vertical, inclined, and horizontal holes, and is mainly used for blast hole drilling and pre-splitting in large open-pit mines and rock excavation projects. The rig is powered by a Yuchai or Cummins non-road diesel engine. The rear flywheel output drives the screw compressor system, while the PTO output drives the hydraulic transmission system.

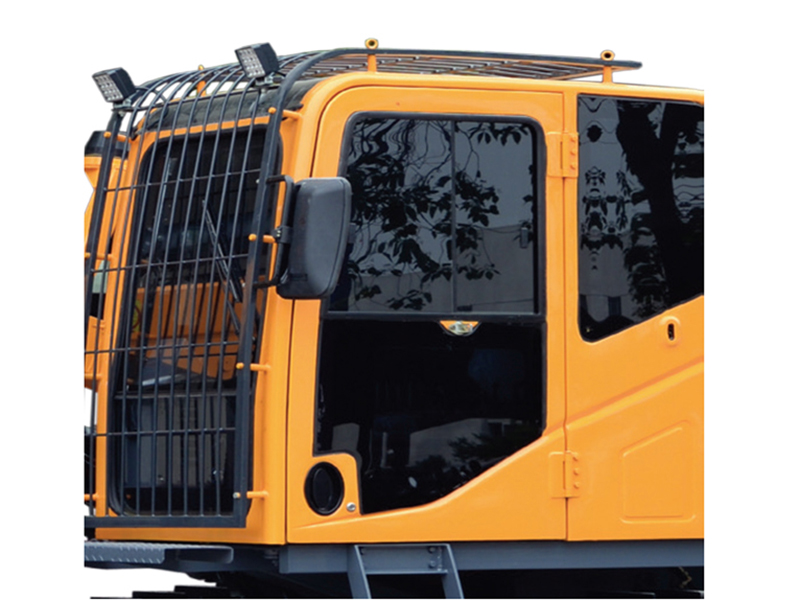

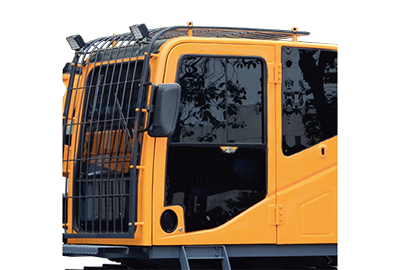

The rig is equipped with an automatic rod handling system, a drill rod floating joint assembly, a drill rod lubrication system, an anti-jamming system, a hydraulic dry-type dust collection system, and an air-conditioned cab. Optional functions include drilling angle and depth indication.

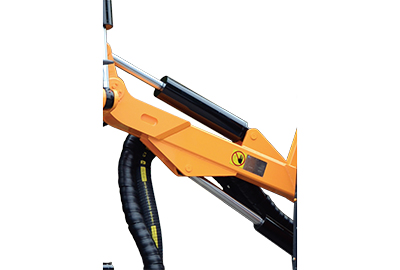

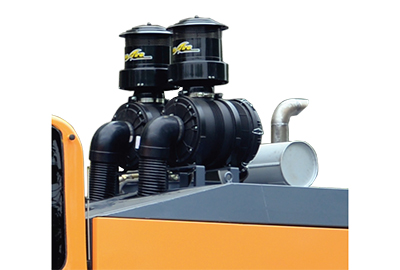

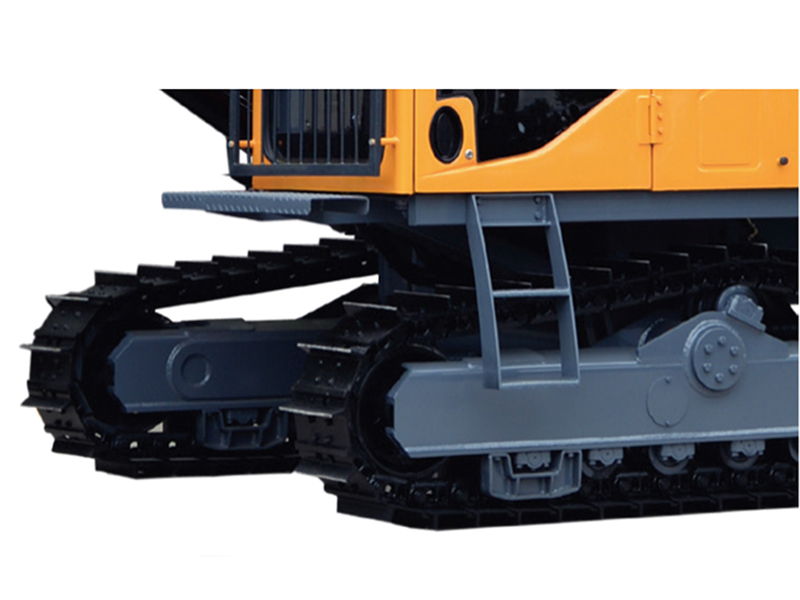

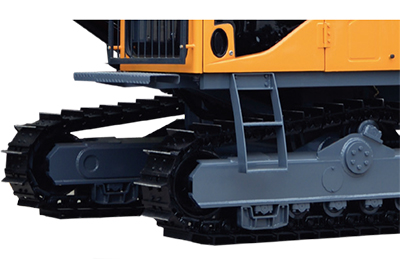

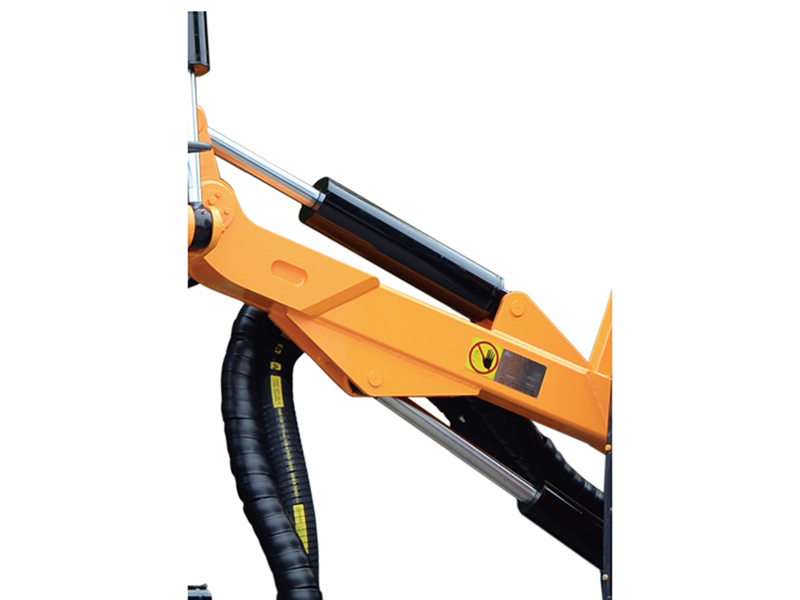

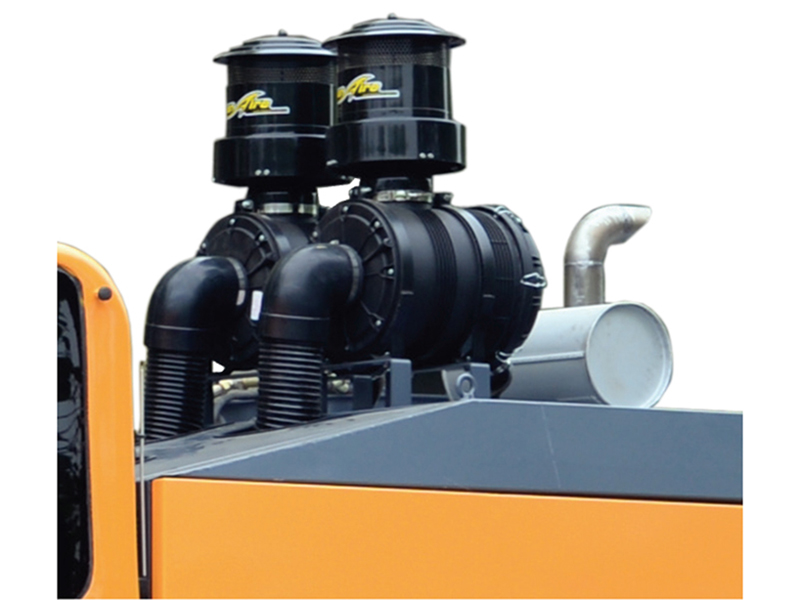

Detail features
| Model No. | ||
| Transport dimensions (L×W×H) | 9900×2300×3200/3500 mm | 10000×2480×3100 mm |
| Weight | 15000 kg | 16800 kg |
| Rock hardness | f=6-20 | f=6-20 |
| Drilling diameter | 90-130 mm | 115-152 mm |
| Ground clearance | 355 mm | 430 mm |
| Track leveling angle | ±10° | ±10° |
| Travelling speed | 0-3 km/h | 0-3 km/h |
| Climbing capacity | 25° | 25° |
| Traction | 120 KN | 87 KN |
| Max. rotary torque | 2500 N · m | 4000 N · m |
| Rotation speed | 0-173 rpm | 0-130 rpm |
| Swing angle of drill boom | Left 18°, right 46° | Left 17°, right 46° |
| Compensation stroke | 1500 mm | 1500 mm |
| Rotary head stroke | 4510 mm | 4510 mm |
| Max. feed force | 37 KN | 39 KN |
| Feed method | Motor + roller chain | Motor + roller chain |
| Economical drilling depth | 32 m | 32 m |
| Number of rods | 7+1 | 6+1 |
| Drilling rod specifications | Ø64/Ø76x4000 mm | Ø76/Ø89x4000 mm |
| Engine | Yuchai YCA08320-T300 | Cummins QSL8.9-C360-30 |
| Rated power | 235 kW | 264 kW |
| Rated speed | 2200 rpm | 2100 rpm |
| Screw compressor | Two-stage compression, 18 m³/min / 22 bar | Two-stage compression, 20 m³/min / 22 bar |
| Traveling control system | Hydraulic pilot | Hydraulic pilot |
| Drilling control system | Hydraulic pilot | Hydraulic pilot |
| Anti-jamming system | Automatic electro-hydraulic anti-jamming | Electro-hydraulic anti-jamming |
| Voltage | 24V DC | 24V DC |
| Safe cab | Meet the requirements of ROPS & FOPS | Meet the requirements of ROPS & FOPS |
| Seat | Adjustable | Standard temperature |
| Entertainment | Radio | Radio |
