KT9D Integrated Surface DTH Drilling Rig

KT9D Integrated Surface DTH Drilling Rig
Inquiry

The integrated surface DTH drilling rig is an advanced drilling rig that integrates the DTH drilling system with a screw-type air compressor system. It is capable of drilling vertical, inclined, and horizontal holes, and is primarily used for blasting and pre-splitting operations in open-pit mining and rock excavation projects. The rig is powered by a Yuchai non-road diesel engine, which simultaneously drives the screw compressor system and the hydraulic transmission system.

The rig is equipped with an automatic rod handling system, a drill rod lubrication system, and a hydraulic dry-type dust collection system. It features strong structural integration, a high level of automation, efficient drilling performance, environmental protection, energy efficiency, convenient operation, high mobility, and safe operation.

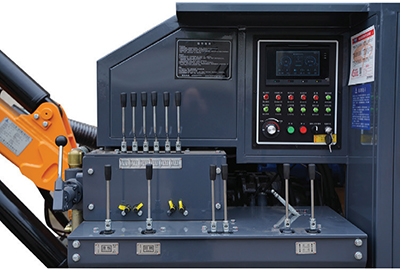

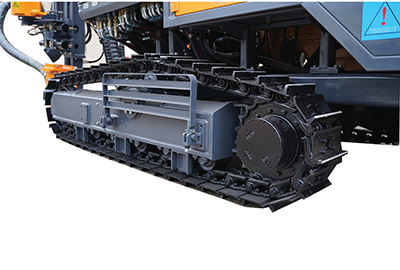

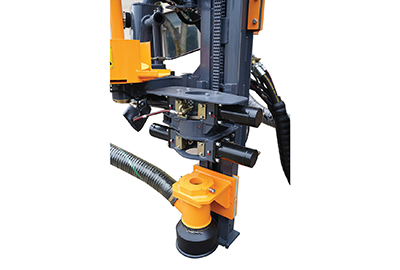

Detail features

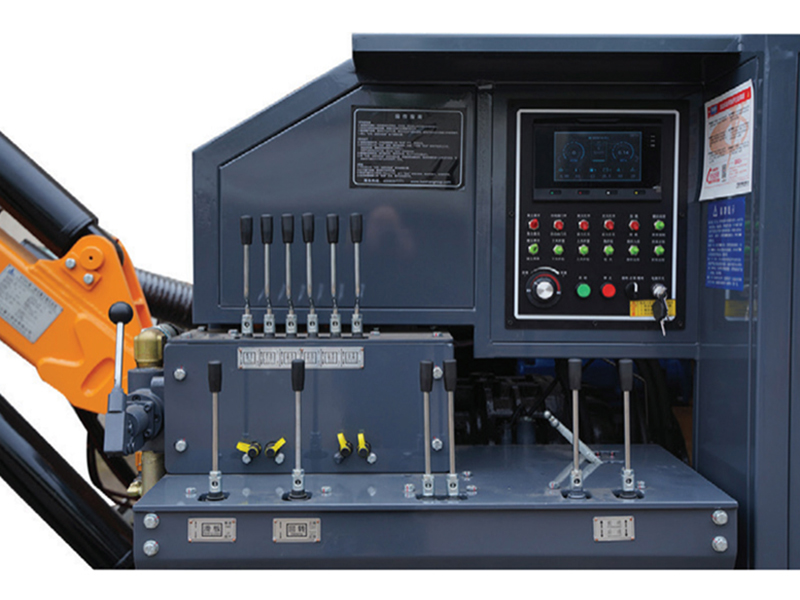

  • Detail features

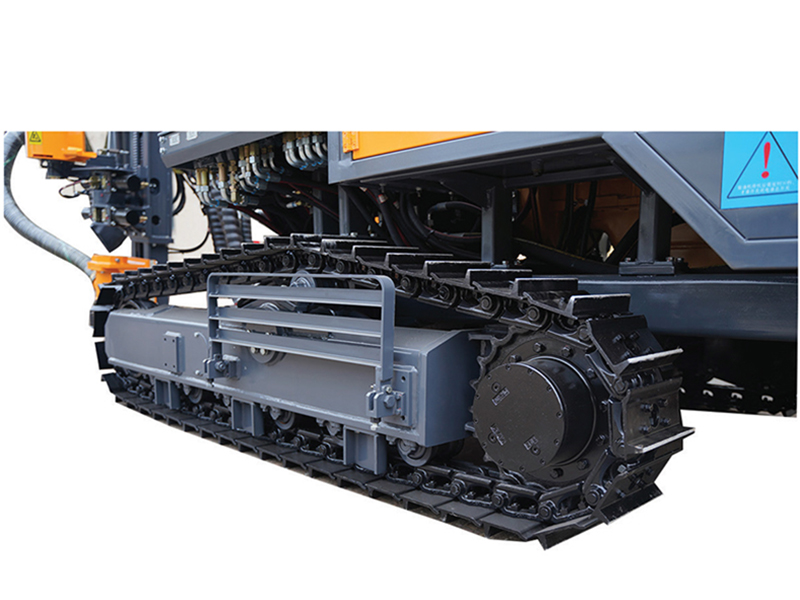

  • Detail features

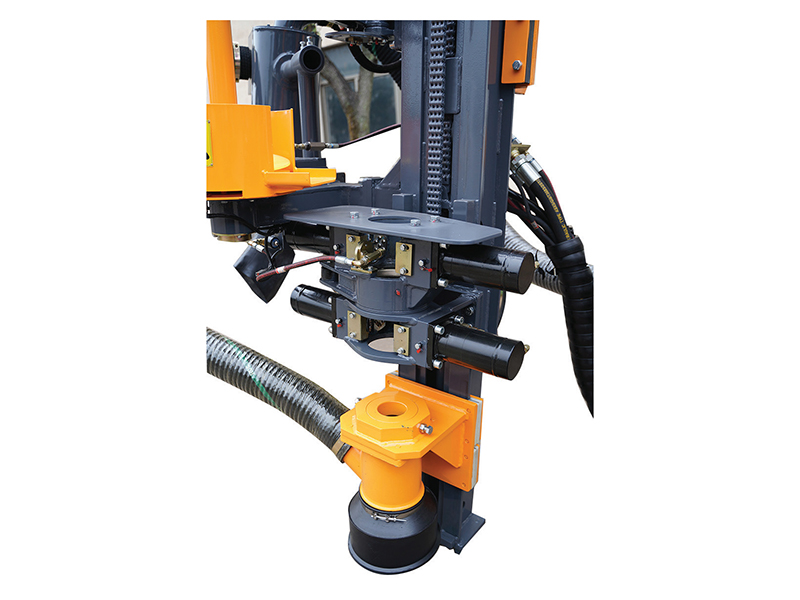

  • Detail features
Technical Parameters
Model of drill rig KT9D
Drilling hardness f=6-20
Drilling diameter Ø115-165 mm
Economical drilling depth 24 m
Travelling speed 2.5/3.5 km/h
Climbing capacity ≤25°
Ground clearance 430 mm
Rated power 295 kW/1900 rpm
Diesel engine Yuchai YCK09400-T300
Screw compressor Two-stage compression, 20 m³/min / 22 bar
Dimensions (L×W×H) 8670×2300×3200 mm
Weight 13000 kg
Rotary speed 0-100 rpm
Max. rotary torque 4000 N · m
Max. feed force 25 KN
Lifting angle of drill boom Up 50°, down 20°
Tilt angle of beam 120°
Swing angle of carriage Hinge Point 1: Right 48°, Left 47° / Hinge Point 2: Right 92°, Left 3°
Swing angle of drill boom Right 46°, left 59°
Leveling angle of the frame ±10°
Single feed stroke 3590 mm
Compensation stroke 900 mm
DTH hammer 5"
Drilling rod Ø76×3000 mm
Number of rods 7+1
Dust collection method Dry-type (hydraulic cyclonic laminar flow)
