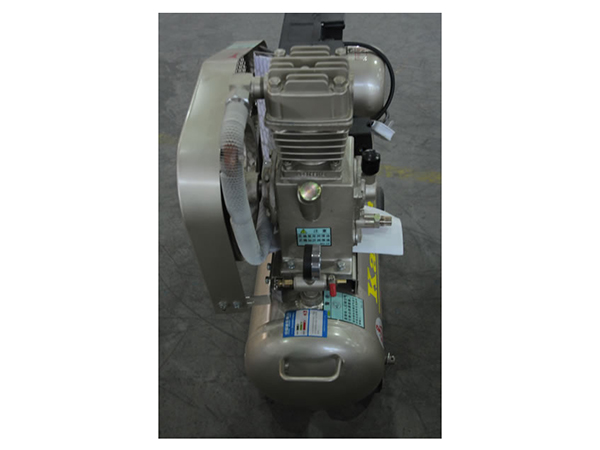

KS Series Industrial Piston Air Compressor
This product has been discontinued and removed from our shelves.
As a professional compressor manufacturer, we can provide excellent industrial compressor. The advantages of our KS series industrial piston air compressor have been listed below. Welcome to contact us for any questions if you are interested in our products.
Feature
1. The rotating speed is quite low, leading to much less noise and longer service life.
2. Higher productivity is obtained due to the reed valve design
3. The piston ring of our industrial piston air compressor is from Japan RIKEN. The durability is great and won't be adhered by any oil.
4. The breather valve comes with a labyrinth type structure, so it won't expel oil.
5. Our one-way valve is made of new type advanced composite material, so it never leaks.
6. The blower wheel of this industrial piston air compressor is designed according to the parent technology from Zhengjiang University. The cooling performance is quite good.
7. This industrial piston air compressor can work continuously for 16 hours.
| No. | Model | Power (HP/kW) | Cylinder (diameter ×number) | Air con- sumption (m³/min) | Max. working pressure (MPa/Bar) | Air receiver (m³) | Overall dimension (L×W×H, mm) | Weight (Kg) |
| 1 | KS10 | 0.75/1 | Φ55×1 | 0.08 | 0.8(8) | 0.05 | 800×350 ×710 | 65 |
| 2 | KS15 | 1.5/1.1 | Φ70×1 | 0.12 | 0.8(8) | 0.05 | 800×350 ×710 | 75 |
| 3 | KS20 | 2/1.5 | Φ55×2 | 0.18 | 0.8(8) | 0.08 | 1000×450 ×750 | 130 |
| 4 | KS30 | 3/2.2 | Φ70×2 | 0.26 | 0.8(8) | 0.08 | 1000×450 ×750 | 150 |
| 5 | KS40 | 4/3 | Φ70×3 | 0.40 | 0.8(8) | 0.175 | 1500×520 ×1050 | 230 |
| 6 | KS55 | 5.5/4 | Φ70×3 | 0.55 | 0.8(8) | 0.175 | 1500×520 ×1050 | 280 |
| 7 | KS75 | 7.5/5.5 | Φ100×2 | 0.75 | 0.8(8) | 0.248 | 1650×580 ×1150 | 305 |
| 8 | KS100 | 10/7.5 | Φ100×3 | 1.0 | 0.8(8) | 0.248 | 1650×600 ×1200 | 340 |
| 9 | KS150 | 15/11 | Φ110×3 | 1.5 | 0.8(8) | 0.31 | 1650×650 ×1350 | 465 |
| 10 | KS200 | 20/15 | Φ125×3 | 2.0 | 0.8(8) | 0.41 | 1850×800 ×1500 | 580 |
| 11 | KS240 | 20/15 | Φ125×3 | 2.4 | 0.8(8) | 0.5 | 1850×800 ×1600 | 600 |
| 12 | KSH20 | 2/1.5 | LPΦ70×2 HPΦ55×1 |
0.13 | 1.25 (12.5) | 0.175 | 1500×520 ×1050 | 230 |
| 13 | KSH30 | 3/2.2 | LPΦ70×2 HPΦ55×1 |
0.21 | 1.25 (12.5) | 0.175 | 1500×520 ×1050 | 260 |
| 14 | KSH40 | 4/3 | LPΦ70×2 HPΦ55×1 |
0.3 | 1.25 (12.5) | 0.175 | 1500×520 ×1050 | 290 |
| 15 | KSH55 | 5.5/4 | LPΦ70×2 HPΦ55×1 |
0.45 | 1.25 (12.5) | 0.175 | 1500×520 ×1050 | 300 |
| 16 | KSH75 | 7.5/5.5 | LPΦ100×2 HPΦ80×1 |
0.60 | 1.25 (12.5) | 0.248 | 1650×600 ×1200 | 320 |
| 17 | KSH100 | 10/7.5 | LPΦ100×2 HPΦ80×1 |
0.8 | 1.25 (12.5) | 0.248 | 1650×600 ×1200 | 350 |
| 18 | KSHD100 | 10/7.5 | LPΦ100×2 HPΦ80×1 |
1.05 | 1.0(10) | 0.248 | 1650×600 ×1200 | 350 |
| 19 | KSH150 | 15/11 | LPΦ125×2 HPΦ100×1 |
1.2 | 1.25 (12.5) | 0.31 | 1650×700 ×1400 | 480 |
| 20 | KSH200 | 15/11 | LPΦ125×2 HPΦ100×1 |
1.6 | 1.0(10) | 0.31 | 1650×700 ×1400 | 480 |
| 21 | KSH200 | 20/15 | LPΦ125×2 HPΦ100×1 |
1.7 | 1.25 (12.5) | 0.41 | 1850×800 ×1550 | 600 |
| 22 | KSH240 | 20/15 | LPΦ125×2 HPΦ100×1 |
2.1 | 1.25 (12.5) | 0.50 | 1850×800 ×1600 | 650 |
