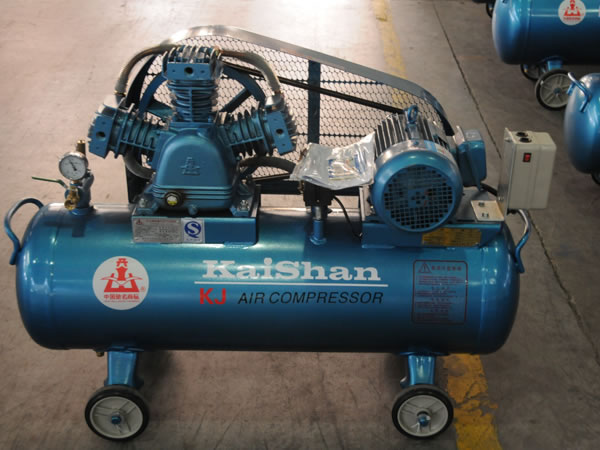

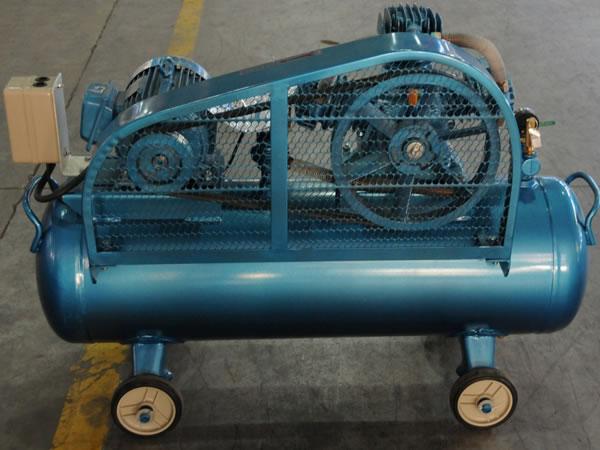

KJ Series Industrial Piston Air Compressor
This product has been discontinued and removed from our shelves.
Our KJ series industrial piston air compressor comes with a very popular design. As an excellent industrial compressor, it can operate for 8 hours continuously. Comparing with other brand reciprocating compressor, our KJ series industrial piston air compressor features easy structure, convenient fixing and maintenance, high productivity, and great cost-effectiveness.
Parameter| No. | Model | Power (HP/ kW) | Cylinder (diameter ×number) | Air con- sumption (m³/min) | Max. working pressure (MPa/Bar) | Air receiver (m³) | Overall dimension (L×W×H, mm) | Weight (Kg) |
| 1 | KJ-100 | 10/7.5 | Φ90×3 | 0.9 | 0.8(8) | 0.19 | 1450×550 ×1060 | 240 |
| 2 | KJ-75 | 7.5/5.5 | Φ80×3 | 0.67 | 0.8(8) | 0.135 | 1450×550 ×1030 | 215 |
| 3 | KJ-40 | 4/3 | Φ65×3 | 0.36 | 0.8(8) | 0.11 | 1220×550 ×900 | 125 |
| 4 | KJH-100 | 10/7.5 | LPΦ90×2 HPΦ80×1 |
0.8 | 1.25(12.5) | 0.19 | 1450×550 ×1060 | 225 |
| 5 | KJH-75 | 7.5/5.5 | LPΦ80×2 HPΦ65×1 |
0.6 | 1.25(12.5) | 0.135 | 1450×550 ×1030 | 205 |
