KSZ100 Fully Pneumatic DTH Drilling Rig
This product has been discontinued and removed from our shelves.

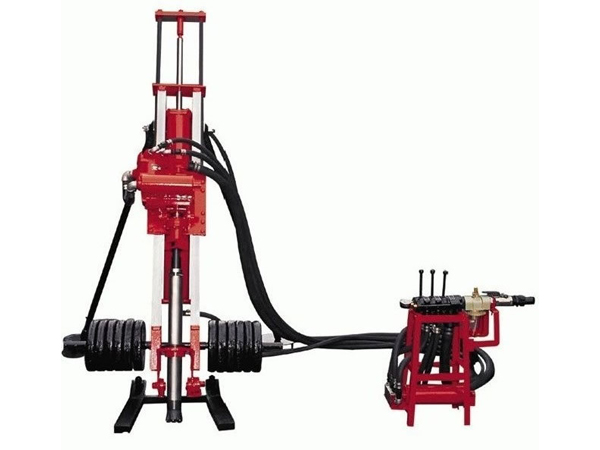

The KSZ100 fully pneumatic DTH drilling rig comes with an air compressor for driving the movements like propulsion, rotating, and impacting. It has great adaptability, and comes in three types with different supporting structures, namely single top type, double top type, and pedestal type. You can choose the proper one according to the working environment. This kind of drilling equipment has simple structure, single motor and is easy to move. The unique two-tone silencer of the fully pneumatic DTH drilling gives rise to a great noise control performance. The centralized operating mechanism makes the pneumatic drill easy to operate.
Specifications| Model | |
| Drill diameter | 80-100 mm |
| Drill depth | ≥20m |
| Rotating speed | 0~93rpm |
| Working pressure | 0.5~0.7MPa |
| Drill rod | 60×1000mm |
| Air consumption | ≥10m³/min |
| Lifting force | 9600N |
| Note | Fully pneumatic type |
Recommend parts for the KSZ100 fully pneumatic DTH drilling rig
Drill hammer: Φ90
Drill bit: Φ90
Drill pipe: Φ60×1000mm
Recommend piston air compressor for the KQY90 pneumatic-hydraulic DTH drilling rig

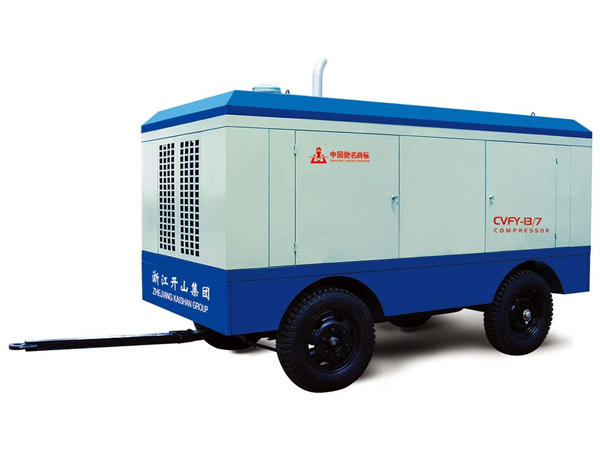

KAISHAN brand CVFY-13/7 and CVF13/7 Diesel piston air compressor
| Model | CVFY-13/7 | CVF-13/7 |
| Rated volume flow | 13m³/min (460cfm) | 13m³/min (460cfm) |
| Rated working pressure | 7bar (102psi) | 7bar (102psi) |
| Engine brand | Yuchai or Cummins | Yuchai or Cummins |
| Engine model | YC6108ZG/6BTA5.9-C118 | YC6108ZG/6BTA5.9-C118 |
| Rated power | 108kW (145HP)/87kW (118HP) | 108kW (145HP)/87kW (118HP) |
| Cylinder (Diameter×Quantity) | 260mm×2/160mm×2 | 260mm×2/160mm×2 |
| Volume of gas tank | 350L | 600L |
| Weight | 3100Kg | 2400Kg |
| Dimension (L×W×H mm) | 3500×1700×2100 | 3280×1200×1520 |
