KQD70/KQD100 Electric DTH Drilling Rig
This product has been discontinued and removed from our shelves.

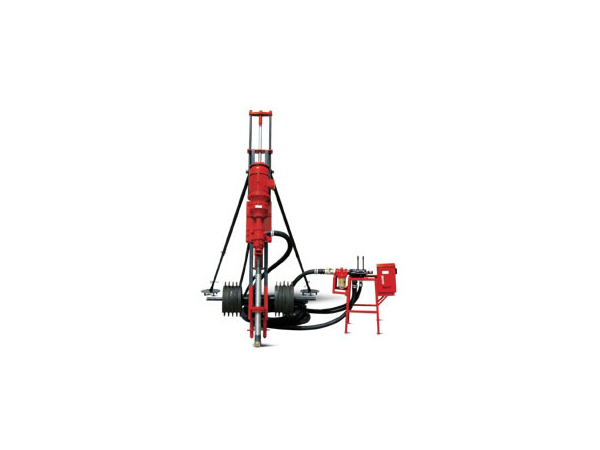

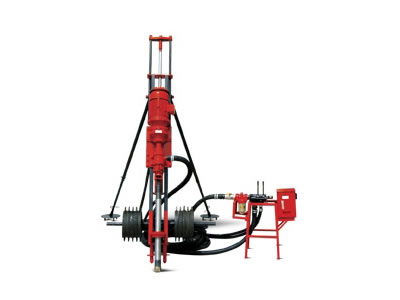

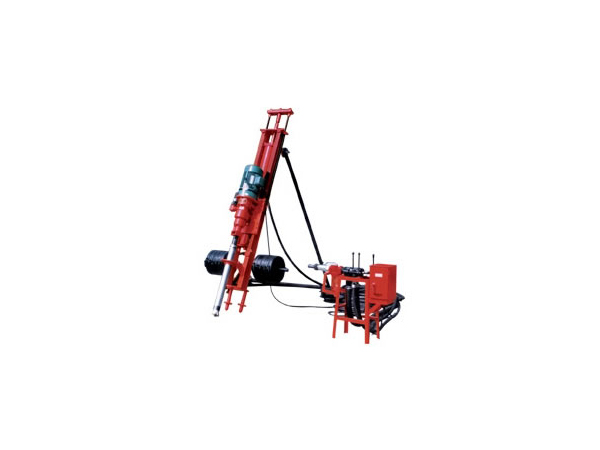

KQD100Our KQD70/KQD100 electric DTH drilling rig is driven by an energy-saving and eco-friendly electromotor. A cycloidal pin wheel speed reducer is used in this DTH driller. This kind of reducer can provide the electric drilling machine with big rotating torque and high rock drilling efficiency. An efficient overload protection circuit is designed to make the electric DTH drilling rig stable and reliable.
Technical Parameters| Model | KQD70 | KQD100 |
| Hole diameter | 60-80 mm | 80 -100 mm |
| Hole depth | ≥15 m | ≥20 m |
| Rotating speed | 0-125 rpm | 0-62 rpm |
| Working air pressure | 0.5~0.7 MPa | 0.5~0.7 MPa |
| Drill rod size | 40×1000 mm | 60×1000 mm |
| Air consumption | ≥3.5 m3/min | ≥7 m3/min |
| Lifting force | 4000N | 9600N |
| Electromotor | 3 kW | 4 kW |
Recommend parts for KQD70 electric DTH drilling rig
Drill hammer: Φ70mm
Drill bit: Φ76mm
Drill pipe: Φ40×1000mm
Recommend parts for KQD100 electric DTH drilling rig
Drill hammer: Φ90
Drill bit: Φ90
Drill pipe: Φ60×1000mm
Recommend air compressor for the KQD70 crawler drilling rig
LGJY-4.5/6 Portable diesel screw compressor KAISHAN brand LGCY-15/13 Portable diesel screw compressor
Recommend air compressor for the KQD100 crawler drilling rig
KAISHAN brand LGCY-6/7, LGCY7.5/7, and LGCY-9/7 Portable diesel screw compressor
