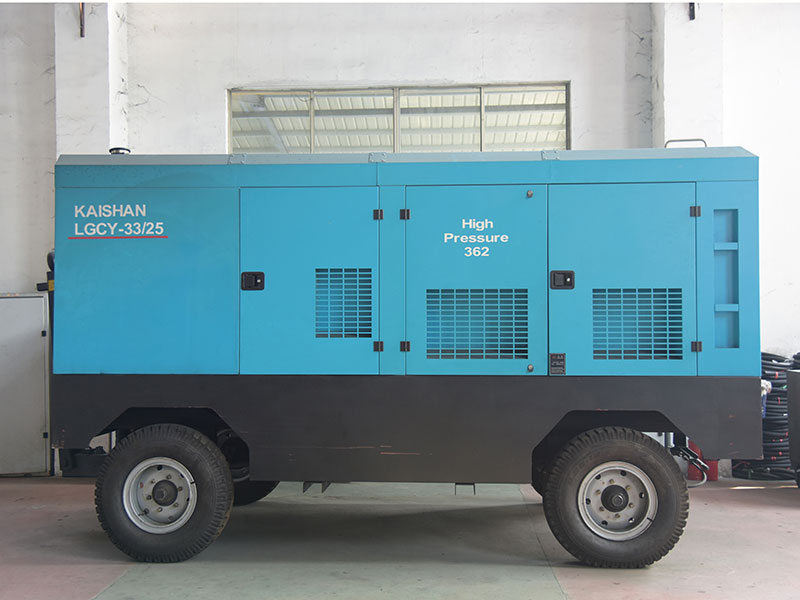

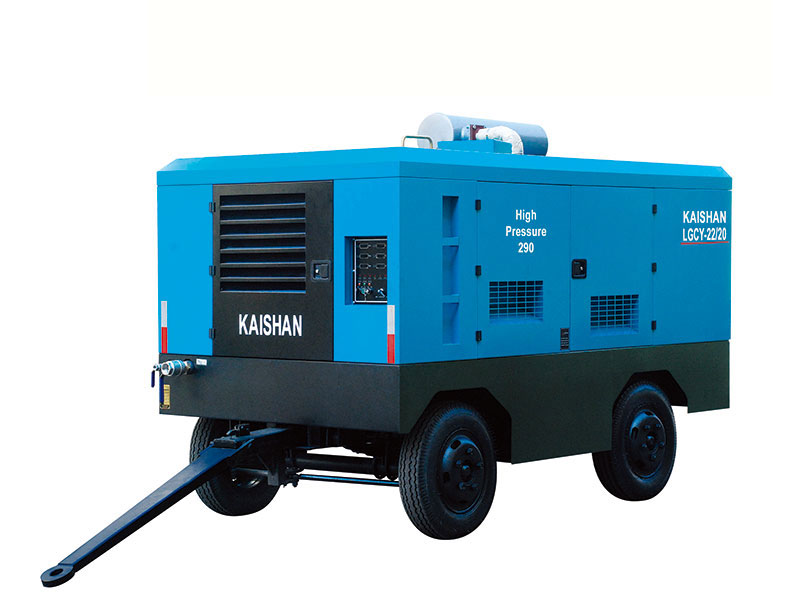

Portable Electric Screw Compressor

The portable electric screw compressor can be used as the borehole driller component in various industries like mining, water conservancy project, road/railway/building construction, shipbuilding, military project, and so on. Its power ranges from 11kW to 250kW, while the air consumption can reach as high as 40m3/min. As a professional screw air compressor supplier, we can provide custom products with different air consumption and working air pressure according to your requirements.

Feature
1. High performance

The quantity of components is quite small, and no quick-wear parts are used. Thus the portable electric screw compressor can work reliably, and the service life is quite long. It takes 40,000 to 80,000 hours to have an overhaul.

2. Convenient operation and maintenance
The high degree of automation makes the machine easy to be operated and maintained. The operators only need to take a short-time training program, and unattended operation is available during the operation of this portable electric screw compressor.

3. Great balanced power
No unbalanced inertia force is observed. The compressor can rotate steadily at a high speed without a base under it, making the portability quite desirable. The other features include small size, light weight, and small covering area.

4. Strong adaptability
An enforcing air supply system is designed, so the volume flow won't be influenced by the working air pressure. Thus a high working efficiency can be obtained in a wide rotating speed range.

5. Others

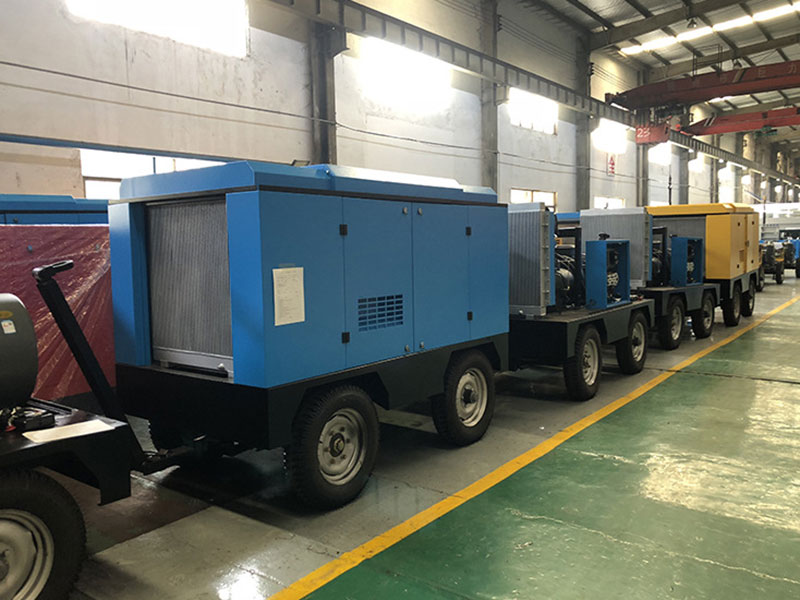

Our portable electric screw compressor has all the advantages of a stationary type screw compressor. The convenient and flexible walking mechanism can shorten the transferring time between different working places, achieving a higher productivity.

Specifications

Model Air consumption (m³/min) Working air pressure (MPa) Motor power (kW) Dimension (mm) Weight (Kg)
LG-3/7Y 3 0.7 18.5 2750×1416×1300 900
LG-3/8GY 3 0.8
LG-3.6/7GY 3.6 0.7 22 1000
LG-6.5/7GY 6.5 0.7 37 3090×1520×1500 1100
LG-6.5/7Y 6.5 0.7 2850×1520×1500
LG-5.6/10Y 5.6 1
LG-4.8/13Y 4.8 1.3
LG-7.4/7GY 7.4 0.7 45 3090×1520×1500 1200
LG-7.4/7Y 7.4 0.7 2850×1520×1500
LG-6.5/10Y 6.5 1
LG-5.6/13Y 5.6 1.3
LG-10.5/7G 10.5 0.7 55 3320×1660×1800 1600
LG-8.7/10Y 8.7 1
LG-7.5/10Y 7.5 1
LG-13/7GY 13 0.7 75 3850×2040×1980 1900
LG-12/10GY 12 1
LG-10/10GY 10 1
LG-13/7GY 13 0.7 75 3320×1660×2000 2700
LG-12/10GY 12 1
LG-10/10GY 10 1
LG-10/13Y 10 1.3 75 3600×1840×2010 1870
LG-16.5/7GY 16.5 0.7 90 3320×1660×2000 2750
LG-14/10GY 14 1
LG-12/13GY 12 1.3
LG-20/7GY 20 0.7 110 3550×1740×2100 3500
LG-16/10GY 16 1
LG-13/13GY 13 1.3
LG-22/7GY 22 0.7 132 3550×1740×2100 3600
LG-20/10GY 20 1
LG-16/13GY 16 1.3
LG-27/8GY 27 0.8 160 3870×1820×2200 4300
LG-23/10GY 23 1
LG-20/13GY 20 1.3
LG-18/17GY 18 1.7 185 3950×1820×2200 4450
LG-35/8GY 35 0.8 200 3870×1820×2250 4600
LG-30/10GY 30 1
LG-26/20GY 26 2 250 4200×1950×2350 5620
