KJ 313

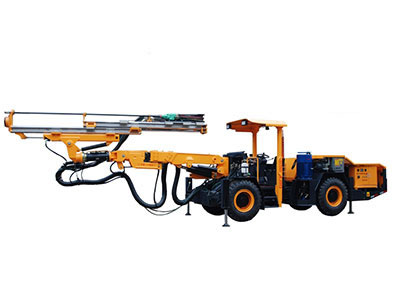

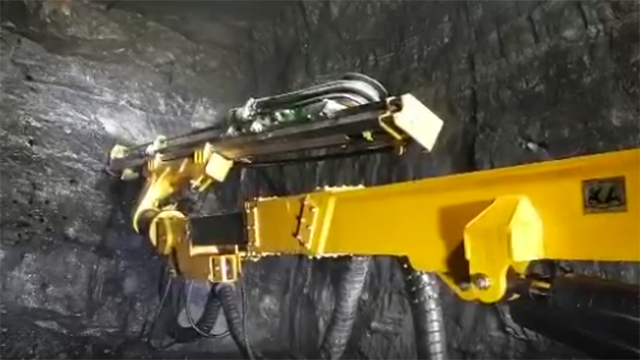

Hydraulic Top Hammer Drilling Jumbo

KJ313 -type full-hydraulic tunnel jumbo is applicable for hard-rock mine tunneling operation of 12-35m2 section, which is specially designed for hitting anchor rod at the same time. It can be used to drill 2.2m-depth bolt hole in the roadway with the height of 4m.

Solid universal arm is equipped with the best section covering shape, and the propulsion beam can turn over by 360° and level off automatically, so as to be convenient for quickly achieving drilling and positioning. Meanwhile, the drill boom can be also used for laterally opening cross drift and anchor-hold drilling operation.

The arrangement of drill carriage shall ensure the view of the manipulator in good condition. The arrangement is in balance condition. The strong four-wheel-drive articulated base plate can ensure that the drill carriage travels flexibly, quickly and safely in the narrow roadway.

High-frequency impact jack drill optimizes the transmission efficiency of impact wave, enhances the drilling rate, reduces consumption of drilling tools and enhances the serviceability rate of equipment by adopting stair piston;

Spacious operation space and a series of automatic functions are conducive for the driver concentrating to safely, quickly and accurately drill.
Each maintenance part is protected well and easy to access and maintain at the same time.

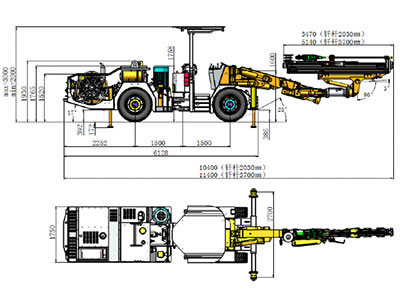

Boundary dimension (including optical auxiliary power station)

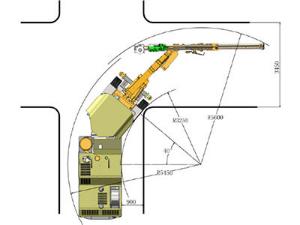

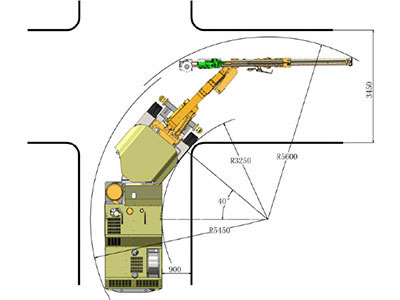

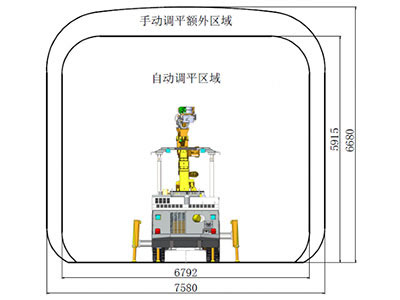

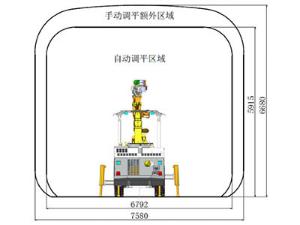

Section hint

Main technical parameters

Boundary dimension and weight
Length 11300mm
Width 1750mm
Height 2000/3000 mm
Weight 12000 kg
Running speed (Horizontal) 10 km/h
Maximum grade ability 0.25
Safety protection
Noise level < 100 dB(A)
Adjustable security ceiling Meet anti-rolling and anti-rock fall requirement
Drilling system
Rock drill 1×HC50/R38 1×HC109/R38
Impact power 13kW 18.8kW
Impact flow 105L/min 135L/min
Surge pressure 130bar 135bar
The maximum rotary pressure 150bar 150bar
Frequency 62 Hz 47 Hz
Torque 325Nm 780Nm
Hole diameter 32-89mm 45-102mm
Turnover of propulsion beam 360°
Compensative travel of propulsion beam 900mm
drill boom
type K26F
form Automatic level off
Flexible drill boom 1200mm
Electric hydraulic power pack
Electric motor 45kW/55kW
Three-phase motor
Impact/ propulsion/drill boom Axial variable displacement piston pump
Rotation Gear pump
Filter fineness 10μ
Hydraulic oil tank 240L
Hydraulic cooler Water cooler
Operating voltage 380V
Frequency 50Hz
Startup method Star delta
Cable Reel 1×K440
Cable capacity of reel 100m/80m
External diameter of cable Φ28mm/Φ32mm
Specification of the cable 3×35+3G6+2×1.5
3×50+3G6+2×1.5
Wind and water circuit system
Air compressor 1×JN5
Displacement 0.5m3/min
Pressure 5-7bar
Shank lubrication device Pressure oil lubrication tank/electromagnetic lubrication pump
Gas consumption for lubrication 0.3m3/min
Oil consumption for lubrication 180-250g/h
Water pump 1×CR3
Power 1.5kW
Pump output 3m3/h
Base plate
Diesel engine BF4L2011 53kW,2800rpm
Tail gas clean-up Power gas catalyst
Transmission system Four-wheel-drive closed-type travelling system
Hunting angle ±10°Swing of rear axle
Tire 11.00-20
Steering mechanism ±40°Articulated steering
Travel braking Double-circuit hydraulic brake
Parking braking Multi-disk wet brake of reducer
Fuel tank 60L
