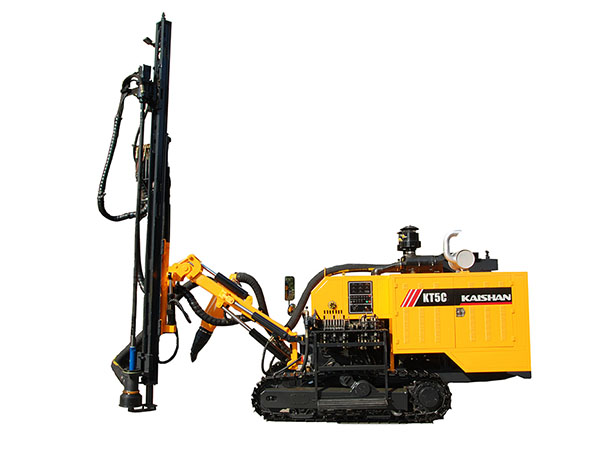

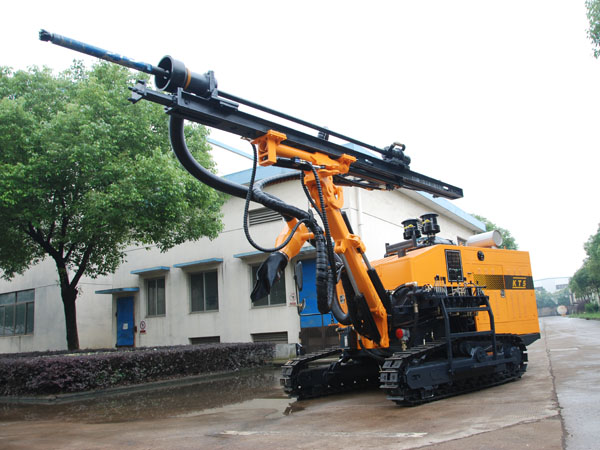

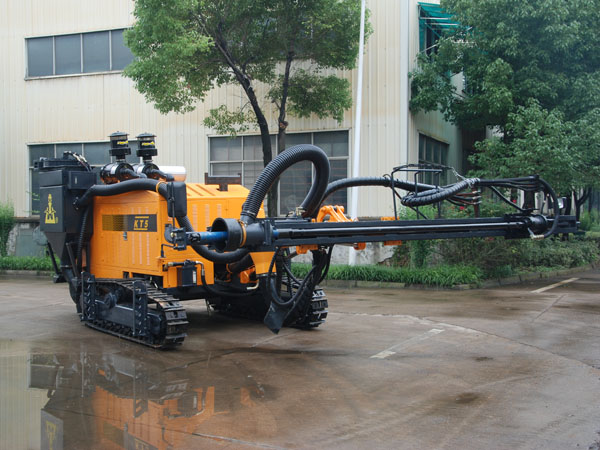

KT5

Medium Pressure Integrated Drilling Rig

Kaishan’s KT5 medium pressure integrated drilling rig combines a DTH drilling system and screw air compressor system. With the advantages of a compact and sturdy structure, reliable performance, easy maneuverability, and safe and environmentally-friendly operation, the integrated open-air DTH drill rig is widely used in mining and excavation projects. It features the following:

1. Compact structure that combines a DTH drilling rig and middle pressure screw air compressor.
2. A single stage middle pressure screw air compressor with a capacity of 10m3/min and pressure of 1.5MPa for pneumatic impact, high efficiency and low energy consumption.
3. A low gravity and balanced distribution of the car with a heavy four wheels and one track configuration (driving wheel, guide wheel, thrust wheel, riding wheel and one track), a 19° automatic leveling device and independently controlled double locking system for stability in different working conditions. The drill rig is also equipped with a two-speed travel motor and reducer structure for the perfect combination of speed and strength.
4. Large displacement hydraulic pump mounted directly on the back of the engine and simple structure to reduce errors.
5. Large-scale drilling boom lifting system meets the needs of a variety of conditions and different stages, especially deep holes.
6. Highly integrated hydraulic control system and centralized layout platform which controls the whole machine.
7. A switch valve for the rotary and propeller speed can adjust according to the different characteristics and conditions of the rock for a fast drilling speed.
8. A real-time monitoring system and stable self-protection system accurately reflects and controls the working status of the drilling rig. It will automatically shut down when the working status goes outside the set range or there is any error in the machine.
9. Effective two-stage dry dust collection system, keeping the working environment cleaner and saving energy.

Specifications

Model No. KT5
Rock Hardness f=6-20
Hole Diameter 80-105 mm
Economic Drill Depth 25m
Walking Speed 2.5-4.0 km/h
Grade Ability 30°
Ground Clearance 430mm
Diesel Motor YC6A180Z-T21
Machine Power 140 KW
Screw Compressor Air Delivery 10 m3/min
Exhaust Pressure 15 bar
Overall Dimension (L*W*H) 6500 × 2400 × 2600 (mm)
Weight 8000 kg
Rotating Speed 0-120 r/min
Rotation Torque 1400 N·m
Biggest Push Pull 25000 N
Carriage Lifting Angle Up 54° down 26°
Carriage Pitch Angle 147°
Carriage Swing Angle Right 47° left 47°
Carriage Lateral Level Swinging Angle Right 15° left 97°
Drill Arm Swing Angle Right 53° left 15°
Leveling Angle Frame Up 10° down 9°
Propulsion Type Hydro-Cylinder-Chain
Push Length (mm) 3000 mm
Compensation Length (mm) 900 mm
Drill Hammer 35A
Drill Pipe φ64×3000 mm
Dust Catcher Mode Dry type (hydraulically driven whirlwind layer streaming)

Recommend Below Spare Parts for KT5

Drill Bit Dia. 100-105 mm 90 mm -100 mm
Drill Pipe Dia. *L Φ64/Φ76 x3000 mm Φ64 x 3000 mm
Drill Hammer HD35/HD45/930 KQ90

Detailed Pictures

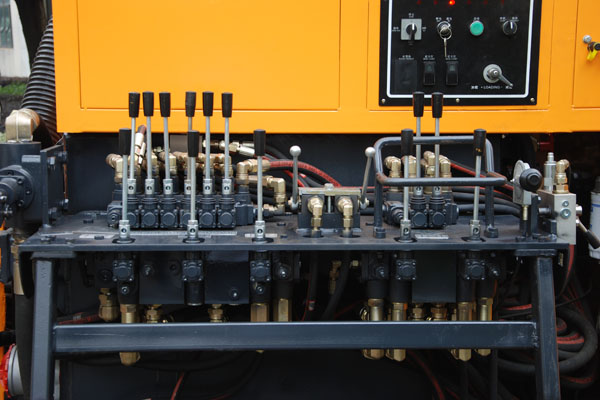

  • Operation Area

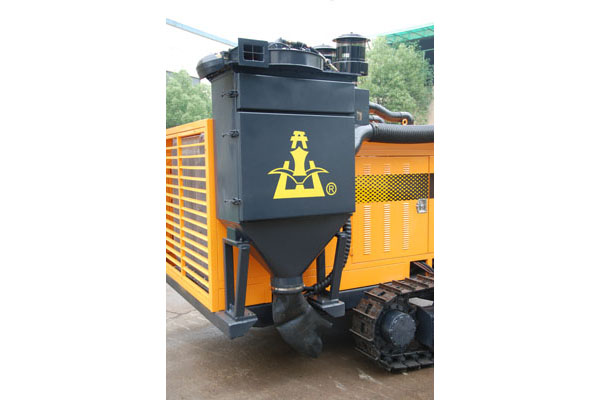

  • Dust Collector

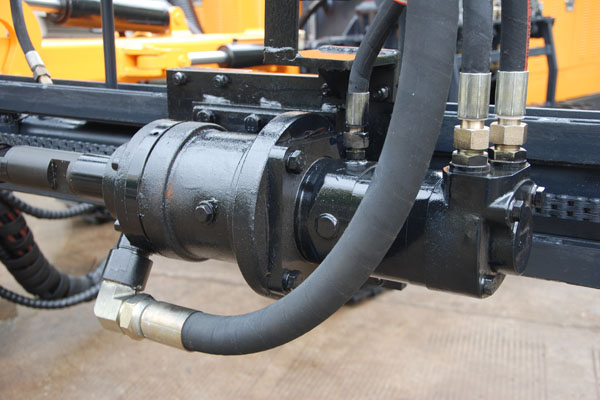

  • Gyrator

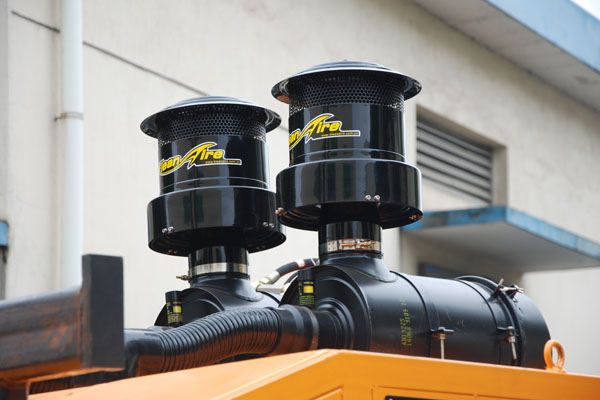

  • Air Cleaner

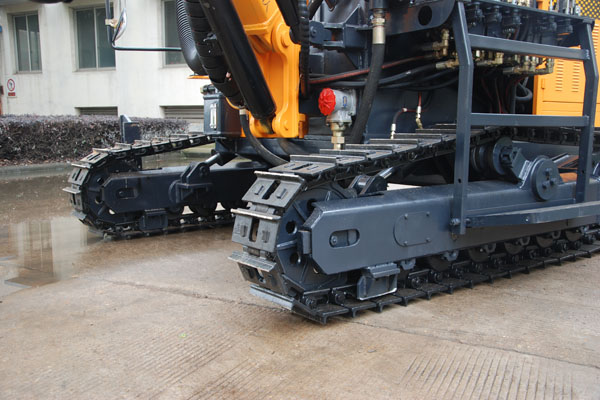

  • Crawler

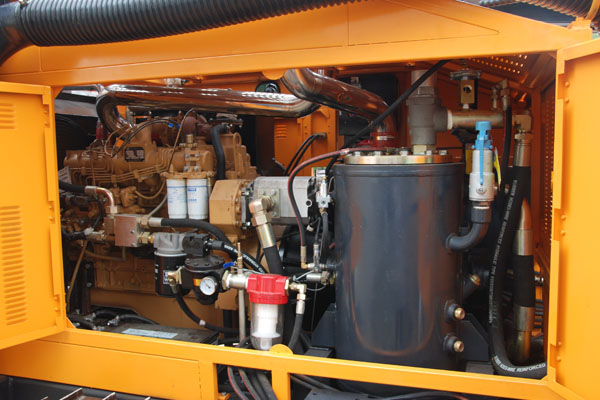

  • Inner
