Low Air Pressure and Middle Air Pressure DTH Hammer

KLD-76A

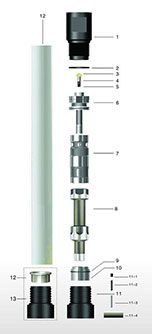

KLD-76A Low Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KLD76A-01
2. Cap KLD76A-02
3. Check Valve KLD76A-03
4. Spring KLD76A-04
5. Shim KLD76A-05
6. Rubber Ring KLD76A-06
7. Valve Cap KLD76A-07
8. Valve KLD76A-08
9. Air Distributor KLD76A-09
10. Inner Cylinder KLD76A-10
11. Piston KLD76A-11
12. Guide Sleeve KLD76A-12
13. Driver Sub KLD76A-13
14. Outer Sleeve KLD76A-14
Hammer Length Without Bit 811mm
Top Sub Thread F48X10PIN
Outside Diameter 66mm
Weight 13.5kg
Bit Diameter 76mm
Working Pressure 58-145psi (4-10bar)
Air Consumption 214-357cfm (6-10m3/Min)
Bit Shank CIR70

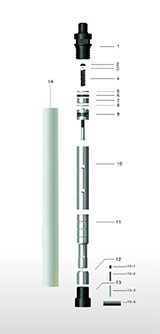

KLD-90A

KLD-90A Low Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KLD90A-01
2. Cap KLD90A-02
3. Check Valve KLD90A-03
4. Spring KLD90A-04
5. Shim KLD90A-05
6. Rubber Ring KLD90A-06
7. Valve Cap KLD90A-07
8. Valve KLD90A-08
9. Air Distributor KLD90A-09
10. Inner Cylinder KLD90A-10
11. Piston KLD90A-11
12. Guide Sleeve KLD90A-12
13. Driver Sub KLD90A-13
14. Outer Sleeve KLD90A-14
Hammer Length Without Bit 855mm
Top Sub Thread F48X10PIN
Outside Diameter 80mm
Weight 22kg
Bit Diameter 90-120mm
Working Pressure 73-145psi (5-10bar)
Air Consumption 245-420cfm (7-12m3/Min)
Bit Shank CIR90

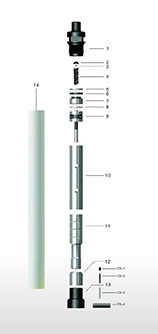

KLD-110B

KLD-110B Low Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KLD110B-01
2. Cap KLD110B-02
3. Check Valve KLD110B-03
4. Spring KLD110B-04
5. Shim KLD110B-05
6. Rubber Ring KLD110B-06
7. Valve Cap KLD110B-07
8. Valve KLD110B-08
9. Air Distributor KLD110B-09
10. Inner Cylinder KLD110B-10
11. Piston KLD110B-11
12. Guide Sleeve KLD110B-12
13. Driver Sub KLD110B-13
14. Outer Sleeve KLD110B-14
Hammer Length Without Bit 871mm
Top Sub Thread API 23/8"REG BOX
Outside Diameter 98mm
Weight 33kg
Bit Diameter 110-150mm
Working Pressure 73-145psi (5-10bar)
Air Consumption 245-420cfm (7-12m3/Min)
Bit Shank CIR110

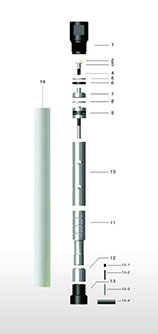

KLD-130B

KLD-130B Low Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KLD130B-01
2. Cap KLD130B-02
3. Check Valve KLD130B-03
4. Spring KLD130B-04
5. Shim KLD130B-05
6. Rubber Ring KLD130B-06
7. Valve Cap KLD130B-07
8. Valve KLD130B-08
9. Air Distributor KLD130B-09
10. Inner Cylinder KLD130B-10
11. Piston KLD130B-11
12. Guide Sleeve KLD130B-12
13. Driver Sub KLD130B-13
14. Outer Sleeve KLD130B-14
Hammer Length Without Bit 890mm
Top Sub Thread API 23/8"REG BOX
Outside Diameter 112mm
Weight 48.5kg
Bit Diameter 130-175mm
Working Pressure 73-145psi (5-10bar)
Air Consumption 245-420cfm (7-12m3/Min)
Bit Shank CIR110/CIR130

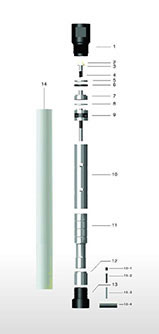

KLD-150A

KLD-150A Low Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KLD150A-01
2. Cap KLD150A-02
3. Check Valve KLD150A-03
4. Spring KLD150A-04
5. Shim KLD150A-05
6. Rubber Ring KLD150A-06
7. Valve Cap KLD150A-07
8. Valve KLD150A-08
9. Air Distributor KLD150A-09
10. Inner Cylinder KLD150A-10
11. Piston KLD150A-11
12. Guide Sleeve KLD150A-12
13. Driver Sub KLD150A-13
14. Outer Sleeve KLD150A-14
Hammer Length Without Bit 904mm
Top Sub Thread F70X10 BOX
Outside Diameter 136mm
Weight 70kg
Bit Diameter 150-200mm
Working Pressure 73-145psi (5-10bar)
Air Consumption 350-560cfm (10-16m3/Min)
Bit Shank CIR150

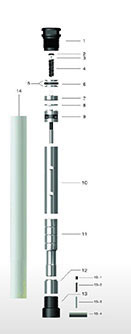

KLD-170A

KLD-170A Low Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KLD170A-01
2. Cap KLD170A-02
3. Check Valve KLD170A-03
4. Spring KLD170A-04
5. Shim KLD170A-05
6. Rubber Ring KLD170A-06
7. Valve Cap KLD170A-07
8. Valve KLD170A-08
9. Air Distributor KLD170A-09
10. Inner Cylinder KLD170A-10
11. Piston KLD170A-11
12. Guide Sleeve KLD170A-12
13. Driver Sub KLD170A-13
14. Outer Sleeve KLD170A-14
Hammer Length Without Bit 1030mm
Top Sub Thread F100X28 PIN
Outside Diameter 156mm
Weight 96kg
Bit Diameter 170-250mm
Working Pressure 73-145psi (5-10bar)
Air Consumption 420-630cfm (12-18m3/Min)
Bit Shank CIR170

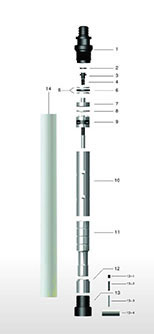

KLD-200A

KLD-200A Low Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KLD200A-01
2. Cap KLD200A-02
3. Check Valve KLD200A-03
4. Spring KLD200A-04
5. Shim KLD200A-05
6. Rubber Ring KLD200A-06
7. Valve Cap KLD200A-07
8. Valve KLD200A-08
9. Air Distributor KLD200A-09
10. Inner Cylinder KLD200A-10
11. Piston KLD200A-11
12. Guide Sleeve KLD200A-12
13. Driver Sub KLD200A-13
14. Outer Sleeve KLD200A-14
Hammer Length Without Bit 1058mm
Top Sub Thread F100X28 PIN
Outside Diameter 182mm
Weight 130kg
Bit Diameter 200-250mm
Working Pressure 73-145psi (5-10bar)
Air Consumption 560-700cfm (16-20m3/Min)
Bit Shank CIR200

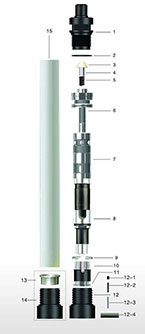

KMD-M3

KMD-M3" Middle Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KMDM3-01
2. O-Ring KMDM3-02
3. Cap KMDM3-03
4. Check Valve KMDM3-04
5. Spring KMDM3-05
6. Air Distributor KMDM3-06
7. Inner Cylinder KMDM3-07
8. Piston KMDM3-08
9. Jump Ring KMDM3-09
10. Guide Sleeve KMDM3-10
11. O-Ring KMDM3-11
12. Driver Sub KMDM3-12
13. Bit Retainer Ring KMDM3-13
14. Driver Sub KMDM3-14
15. Outer Sleeve KMDM3-15
Hammer Length Without Bit 870mm
Top Sub Thread F48X10PIN
Outside Diameter 80mm
Weight 24kg
Bit Diameter 90-120mm
Working Pressure 145-189psi (10-13bar)
Air Consumption 280-350cfm (8-10m3/Min)
Bit Shank CIR90/M3

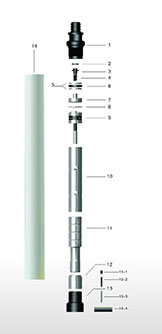

KMD-M4

KMD-M4" Middle Air Pressure DTH Hammer
Item Description Part Number
1. Top Sub KMDM4-01
2. O-Ring KMDM4-02
3. Cap KMDM4-03
4. Check Valve KMDM4-04
5. Spring KMDM4-05
6. Air Distributor KMDM4-06
7. Inner Cylinder KMDM4-07
8. Piston KMDM4-08
9. Guide Sleeve KMDM4-09
10. O-Ring KMDM4-10
11. Driver Sub KMDM4-11
12. Bit Retainer Ring KMDM4-12
13. Driver Sub KMDM4-13
14. Outer Sleeve KMDM4-14
Hammer Length Without Bit 848mm
Top Sub Thread API 23/8" REG BOX
Outside Diameter 104mm
Weight 34kg
Bit Diameter 115-150mm
Working Pressure 145-189psi (10-13bar)
Air Consumption 280-420cfm (8-12m3/Min)
Bit Shank CIR110/M4
