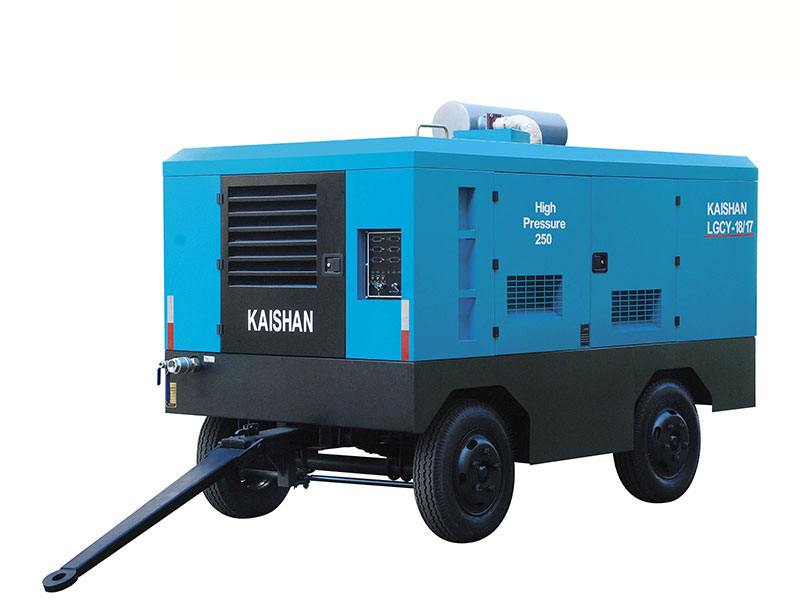

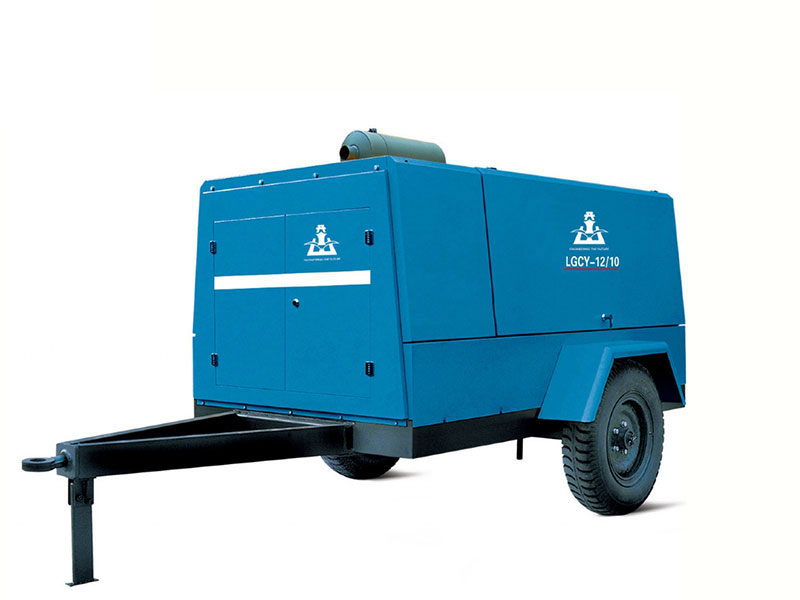

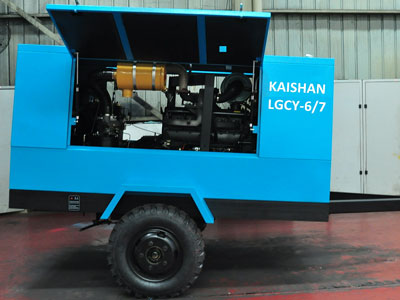

Portable Diesel Screw Compressor
As a famous air compressor manufacturer, KAISHAN is one of the leaders on the portable diesel screw compressor market in China. We are also the only manufacturer who can produce the main structure of two-stage compression high pressure screw. The annual yield of this kind of screw air compressor is increasing year by year remarkably. Now our market share in China is at a significant leading position.
Our portable diesel screw compressor is efficient, reliable, and comes in a complete range of models. The power ranges from 37-300kW, and the air consumption can reach 30 m3/min. The air consumption can reach as high as 2.2Mpa. As an important part for various kinds of construction equipment, this portable compressor can be used in many industries like shipbuilding, military project, mining, and the construction of road, railway, water conservancy project, building, and so on.
1. Main structure

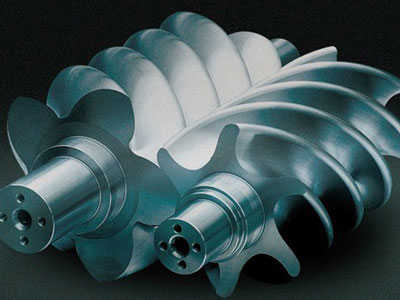

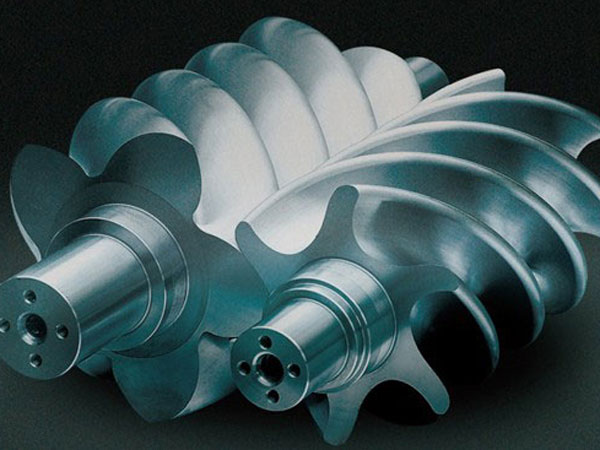

The big diameter rotor comes with patented shaped wire. The high-elastic coupling is used to connect the main structure and the diesel engine directly-no overdrive gear is used. Thus the rotating speed of the main structure of our portable diesel screw compressor is identical to that of the diesel engine, leading to higher efficiency, better reliability and longer service life.

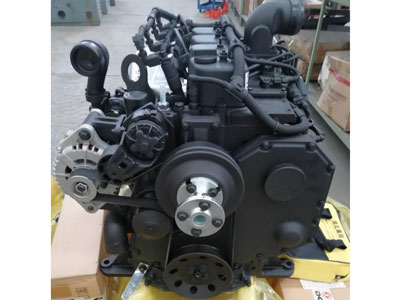

2. Diesel engine
The diesel engines are purchased from famous companies (such as Yuchai and Commins) at home and abroad. These engines have powerful movements and low oil consumption level, and the exhaust can reach very high environmental protection standard. Commins has a mature after-sale service system covering all over the world, while Yuchai also has its service branches in most countries and regions.
3. Air flow control system
The air flow control system of the portable diesel screw compressor is concise and reliable. It can regulate the air inlet volume in the range of 0-100% according to the air consumption. Besides, the accelerator is also adjusted automatically by this system to save the diesel consumption to the largest degree.

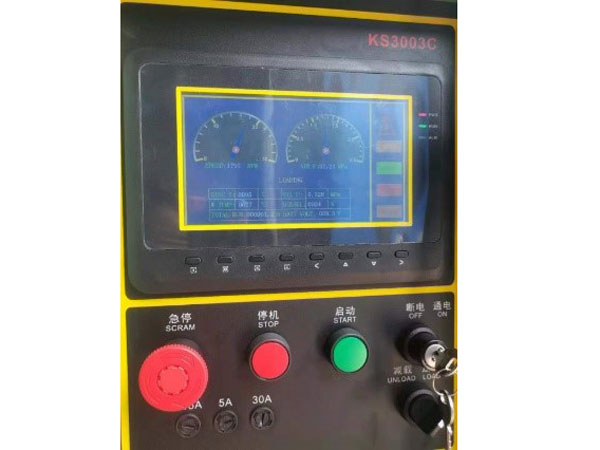

4. Microcomputer monitor
A microcomputer is designed to monitor parameters like working air pressure, exhaust gas temperature, rotating speed of engine, oil pressure, water temperature, fuel tank level, and so on. The automatic alarming and shutdown functions are all available.

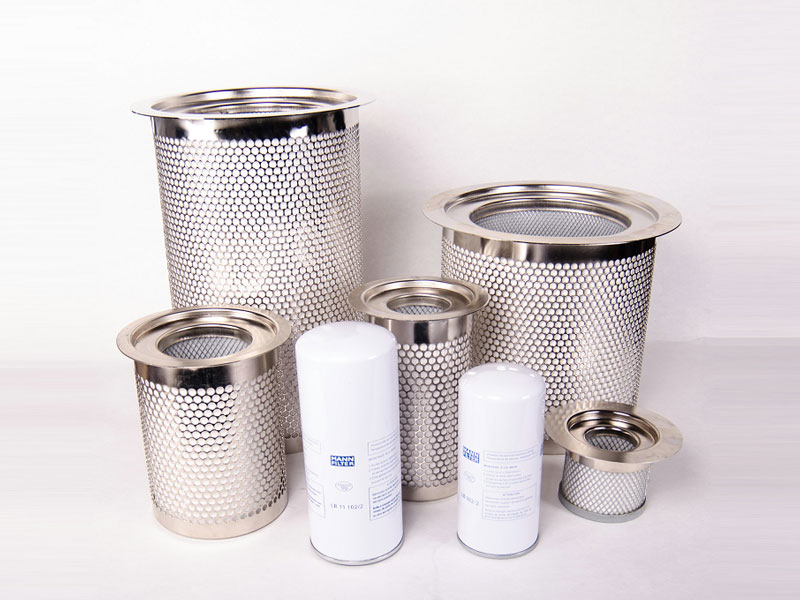

5. Multi-stage air filter
A multi-stage air filter is available in our portable diesel screw compressor. It suits perfectly the working environment with much floating powder. The multistage fuel strainer is suitable for the common fuels around the world. The super oil/water cooler suits the high temperature and high altitude environment.

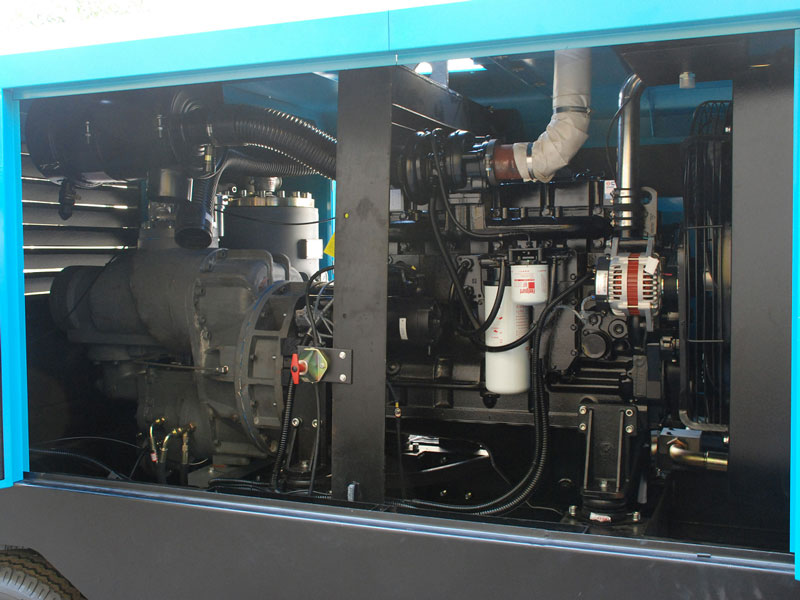

6. Access door
The access door for maintenance and repairing is wide enough for accessing to all the components, like air filter, fuel strainer, fuel tank, battery, oil cooler, and so on. Thus the downtime could be reduced.
7. Moving mechanism
A convenient moving mechanism is designed so that the portable diesel screw compressor can move flexibly even under bad topographic conditions. Each compressor comes with a hanging ring for easy hanging and transportation.
|Model#||Capacity (m3/min)||Exhaust pressure (Mpa)||Diesel Engine||Weight (Kg)||Size (L×W×H, mm)||Note|
|6.0||0.7||YuChai YCD4B22-95, 70kW/95HP||1400||3750×1920 ×1700||2 wheels|
|7.5||0.7||YuChai YC4D80-K11, 58kW/80HP||1850||3900×1920 ×1700||2 wheels|
|8||1.4||Cummins 4BTA3.9-C125, 90kW/125HP||1900||3900×1920 ×1900||2 wheels|
|9||0.7||YuChai YC4D95Z-K20, 70kW/95HP||1850||3900×1920 ×1700||2 wheels|
|9||1.45||YuChai YC6B150Z-K20, 110kW/150HP||2380||3970×1940 ×2350||2 wheels|
|10||0.7||YuChai YC4D95Z-K20, 70kW/95HP||1900||3900×1920 ×1700||2 wheels|
|10||1.0||Cummins 4BTA3.9-C125, 90kW/125HP||1900||3900×1920 ×1900||2 wheels|
|10||1.3||YuChai YC6B150Z-K20, 110kW/150HP||2380||4080×1980 ×2350||2 wheels|
|10||1.3||YuChai YC4A125E-T21, 90kW/125HP||2380||4080×1980 ×2350||2 wheels|
|10||1.1||Cummins 6BT5.9-C150, 110kW/150HP||2380||4080×1980 ×2350||2 wheels|
|11||1.3||Cummins 6BT5.9-C180, 132kW/180HP||2380||4080×1980 ×2350||2 wheels|
|12||0.7||YuChai YC4A125E-T21, 90kW/125HP||2050||3900×1920 ×1900||2 wheels|
|12||0.7||Cummins 4BTA3.9-C125, 90kW/125HP||2050||3900×1920 ×1900||2 wheels|
|12||0.7||YuChai YC6B150Z-K20, 110kW/150HP||2050||3900×1920 ×1900||2 wheels|
|12||1.2||Cummins 6BT5.9-C160, 118kW/160HP||2380||4080×1980 ×2350||2 wheels|
|12||1.0||YuChai YC6B150Z-K20, 110kW/150HP||2380||4080×1980 ×2350||2 wheels|
|12||1.0||QuanChai QC6108ZG, 110kW/150HP||2380||4080×1980 ×2350||2 wheels|
|13||1.3||Cummins 6BT5.9-C180, 132kW/180HP||2750||3450×1520 ×2220||4 wheels|
|13||1.3||YuChai YC6A190E-T10, 140kW/190HP||2750||3450×1520 ×2220||4 wheels|
|13||1.7||Cummins 6CTA8.3-C215, 158kW/215HP||2380||3780×1980 ×2350||4 wheels|
|15||1.3||ZQ Steyr WD415.23-230, 166kW/230HP||3350||3380×1650 ×2500||4 wheels|
|15||1.3||YuChai YC6A240-20, 177kW/240HP||3350||3380×1650 ×2500||4 wheels|
|16||1.3||Cummins 6CTA8.3-C215, 158kW/215HP||3700||3980×1800 ×2450||4 wheels|
|17||0.7||Cummins 6BT5.9-C180, 132kW/180HP||3050||3380×1640 ×2350||4 wheels|
|17||1.45||Cummins 6CTA8.3-C260, 192kW/260HP||3700||3980×1800 ×2450||4 wheels|
|19||1.45||Cummins 6CTA8.3-C260, 192kW/260HP||3700||3980×1800 ×2450||4 wheels|
|22||0.8||Cummins 6CTA8.3-C260, 192kW/260HP||4000||4580×1950 ×2600||4 wheels|
|22||1.4||YuChai YC6M340-20, 250kW/340HP||4500||4580×1950 ×2600||4 wheels|
|22||1.4||Cummins 6CTA8.9-C325, 239kW/325HP||4500||4580×1950 ×2600||4 wheels|
|22||1.8||YuChai YC6M340-20, 250kW/340HP||4500||4580×1950 ×2600||4 wheels|
|22||1.8||Cummins 6CTA8.9-C325, 239kW/325HP||4500||4580×1950 ×2600||4 wheels|
|27||1.0||YuChai YC6M340-20, 250kW/340HP||5000||4600×1950 ×2850||4 wheels|
|32||1.0||YuChai YC6M390-20, 287kW/390HP||5000||4600×1950 ×2850||4 wheels|
|32||1.0||DF Cummins 6LTA8.9-C360, 265kW/360HP||5000||4600×1950 ×2850||4 wheels|

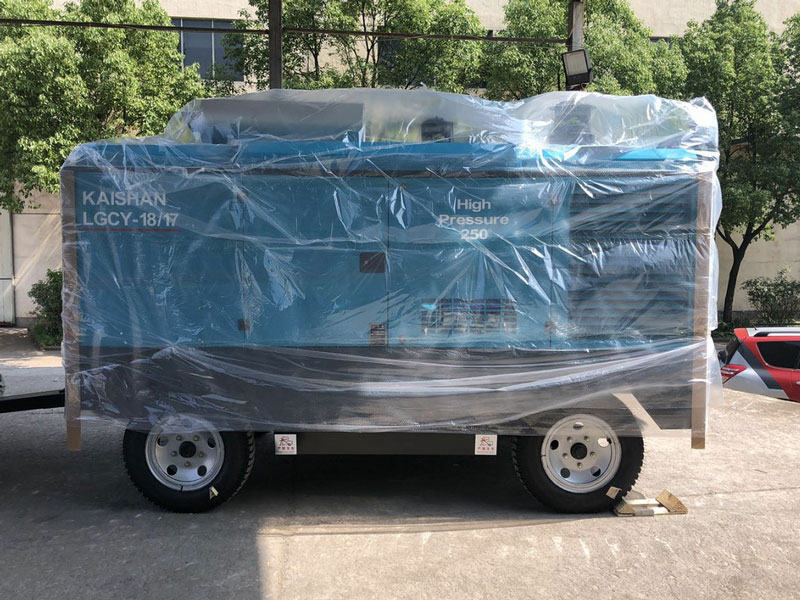

|High Pressure Two-stage compression|
|18||1.7||Cummins 6CTA8.3-C260, 192kW/260HP||3700||3980×1800 ×2450||4 wheels|
|19.5||1.9||Cummins 6CTA8.3-C260, 192kW/260HP||3700||3980×1800 ×2450||4 wheels|
|19.5||1.9||YuChai YC6M260L-K20, 192kW/260HP||3700||3980×1800 ×2450||4 wheels|
|22||2.0||Cummins 6CTA8.9-C325, 239kW/325HP||4850||4600×1950 ×2850||4 wheels|
|22||2.0||YuChai YC6M340L-K20, 250kW/340HP||4850||4600×1950 ×2850||4 wheels|
|26||2.0||Cummins 6LTA8.9-C360, 265kW/360HP||4850||4450×1950 ×2650||4 wheels|
|27||2.0||YuChai YC6M395L-K20, 290kW/395HP||4850||4600×1950 ×2850||4 wheels|
|27||2.2||CQ Cummins NTA855-P400, 294kW/400HP||4850||4600×1950 ×2850||4 wheels|
|26||2.5||Cummins QSZ13-C500, 368kW/500HP||5000||4600×1950 ×2600||4 wheels|
|26||2.5||YuChai YC6K500L, 368kW/500HP||5000||4600×1950 ×2600||4 wheels|
|21||3.5||Cummins QSZ13-C500, 368kW/500HP||5500||4600×1950 ×2600||4 wheels|
|21||3.5||YuChai YC6K500L, 368kW/500HP||5500||4600×1950 ×2600||4 wheels|
|33||2.5||Cummins QSZ13-C550, 405kW/550HP||6800||4700×2100 ×2600||4 wheels|
|33||2.5||YuChai YC6K550L, 405kW/550HP||6800||4700×2100 ×2850||4 wheels|
|26||3.5||Cummins QSZ13-C550, 405kW/550HP||6800||4700×2100 ×2850||4 wheels|
|26||3.5||YuChai YC6K550L, 405kW/550HP||6800||4700×2100 ×2850||4 wheels|
|39||2.5||CQ Cummins KTA19-P700, 515kW/700HP||6800||4700×2100 ×2850||4 wheels|
|39||2.5||Caterpillar C-18ACERT, kW/HP||6800||4700×2100 ×2850||4 wheels|
|33||3.5||CQ Cummins KTA19-P700, 515kW/700HP||6800||4700×2100 ×2850||4 wheels|
|33||3.5||Caterpillar C-18ACERT, kW/HP||6800||4700×2100 ×2850||4 wheels|
