KQD70/KQD100

Electric DTH Drilling Rig

  • KQD70
  • KQD100

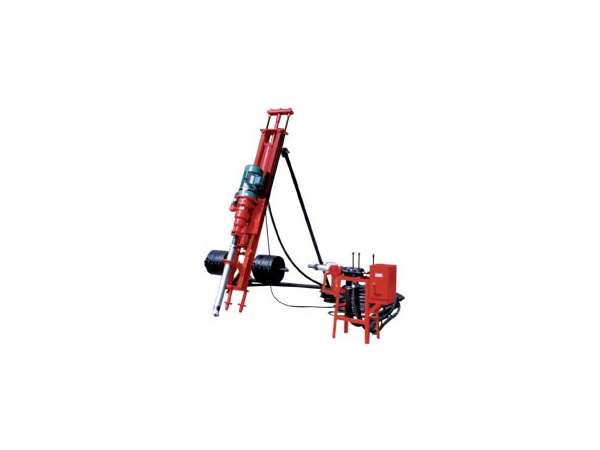

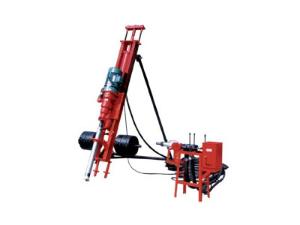

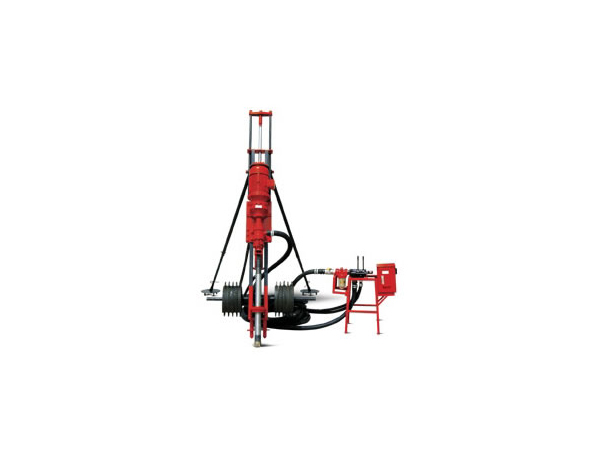

Our KQD70/KQD100 electric DTH drilling rig is driven by an energy-saving and eco-friendly electromotor. A cycloidal pin wheel speed reducer is used in this DTH driller. This kind of reducer can provide the electric drilling machine with big rotating torque and high rock drilling efficiency. An efficient overload protection circuit is designed to make the electric DTH drilling rig stable and reliable.

Parameter

Model KQD70 KQD100
Hole diameter 60-80 mm​ 80 ​-100 mm​
Hole depth ≥15 ​m ≥20 m
Rotating speed 0-125​ rpm 0-62 rpm
Working air pressure 0.5~0.7 MPa 0.5~0.7 MPa ​
Drill rod size 40×1000 ​mm 60×1000 ​mm
Air consumption ≥3.5 ​m3/min ≥7 m3/min
Lifting force 4000​N 9600​N
Electromotor 3 kW​ 4 kW​

Recommend parts for KQD70 electric DTH drilling rig
Drill hammer: Φ70mm
Drill bit: Φ76mm
Drill pipe: Φ40×1000mm

Recommend parts for KQD100 electric DTH drilling rig
Drill hammer: Φ90
Drill bit: Φ90
Drill pipe: Φ60×1000mm

Recommend air compressor for the KQD70 crawler drilling rig
LGJY-4.5/6 Portable diesel screw compressor KAISHAN brand LGCY-15/13 Portable diesel screw compressor

Recommend air compressor for the KQD100 crawler drilling rig
KAISHAN brand LGCY-6/7, LGCY7.5/7, and LGCY-9/7 Portable diesel screw compressor
