MGY60

Anchor Drilling Rig

This product has been discontinued and removed from our shelves.

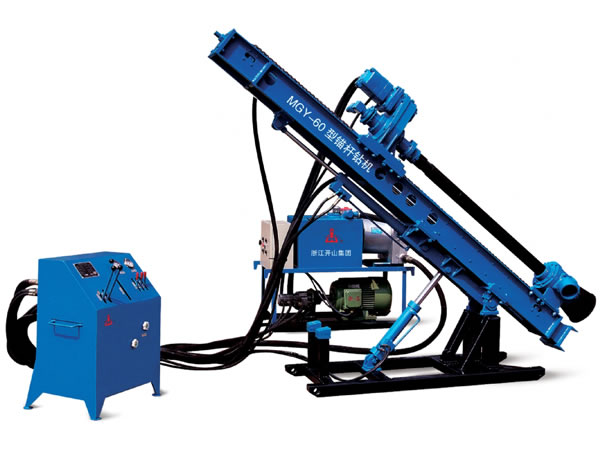

The MGY60 anchor drilling rig has combined the features of some similar anchor drilling machines on the market. The design is also optimized according to the practical anchoring needs. It can be used as a piece of borehole drilling equipment in the projects like landslide control, dangerous rock anchoring, as well as ground stabilization, blasthole drilling, drain hole drilling, and so on.

In addition to the regular anchor hole drilling operations, the MGY-60 anchor drilling rig, together with casing, can also drilling special holes.

Specifications

Hole diameter φ110~φ150 mm
Hole depth ≧ 60 m
Drill rod φ89×1500 mm
Drilling angle -13~+94°
Rotating speed 38/70 r/min
Max. torque 2500 Nm
Rated lifting force 45 KN
Rated propulsion force 30 KN
Air pressure 0.7-- 1.2 MPa
Main structure dimension (L×W×H) 3100×1166×1520 mm
Pump station dimension (L×W×H) 1580×656×1048 mm
Total weight 1240 Kg
Electromotor power 22 kW
Air compressor ≥13 M3/min

The KAISHAN brand LGCY-18/17 and LGCY-19.5/19 portable diesel screw compressor is recommended for our MGY60 anchor drilling rig.
