KGH6

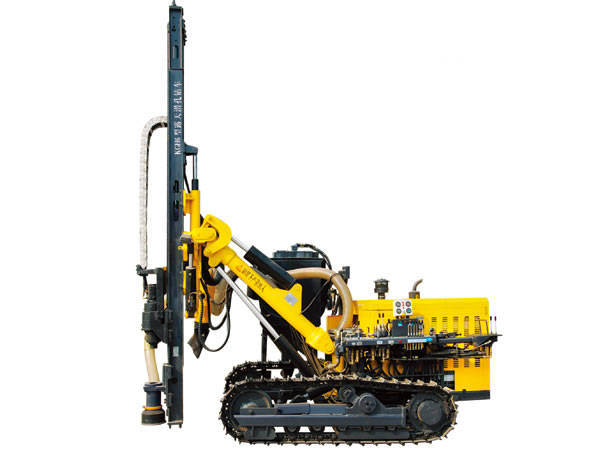

High Pressure Eco-friendly Crawler Drilling Rig

This product has been discontinued and removed from our shelves.

The KGH6 high pressure eco-friendly crawler drilling rig is an update version of our previous product, KG940A type crawler drilling machine. Several new features will be listed below. Contact us if you have any questions about this eco-friendly boreholl drill.

Feature
1. Dry type dust collecting device

A dry type dust collecting device is added to the crawler drilling equipment, making the operation process more eco-friendly.

2. Powerful propulsion and rotating mechanism
The new type rotating device of our crawler drilling rig consists of large torque cycloid hydraulic motor, planetary reducer, providing plenty of torque reserve. Thus the drill rod blocking risk is greatly reduced.

3. Powerful engine
The YC-4D80 type four-cylinder diesel engine is adopted for our high pressure eco-friendly crawler drilling rig. This powerful engine can work really stably.

4. Wide application
After optimization, the jib lubbing mechanism and round drill arm of this borehole driller are easy to be adjusted. The covered operation area is extended to a large degree, and the horizontal hole can be drilled at a low position.

Specifications

Model KGH6 Drilling Rig
Rock hardness F = 6-20
Hole diameter Ф105-152mm
Economical drill depth 25m
Pressure 1.0-2.4Mpa
Air consumption 12-24m³/min
Rotating speed 0-100r/min
Rotation torque 2800N.m
Lifting capacity 22000N
Propulsion type Hydro-Cylinder-Chain
Propulsion length 3000mm
Propulsion speed 580mm/s
Drill rod specification Φ76×3000mm/Φ89×3000mm
Gradeability 30°
Ground clearance 320mm
Walking speed 0-2km/h
Drill arm rising angle Down 25°, up 45°, total 70°
Drill arm swing angle Left 45°, right 45°, total 90°
Carriage swing angle Left 95°, right 50°, total 145°
Carriage pitch angle 180°
Max. frame floating angle ±10°
Carriage compensation 1200mm
Diesel engine YC-4D80 (58kW, 2400r/min)
Overall Dimension(L×W×H) 5355×2330×2365mm
Total weight 6500kg
Note Pneumatic-hydraulic driving mechanism, dry type dust collector, and speed reducer are available.

Recommend parts for KGH6 high pressure eco-friendly crawler drilling rig
Drill bit: Φ115
Drill hammer: HD45A
Drill rod: Φ76×3000mm

Recommended screw air compressor for KGH6 high pressure eco-friendly crawler drilling rig
KAISHAN brand LGCY-18/17 Portable diesel screw compressor KAISHAN brand LGCY-19.5/19 Portable diesel screw compressor KAISHAN brand LGCY-22/20 Portable diesel screw compressor
