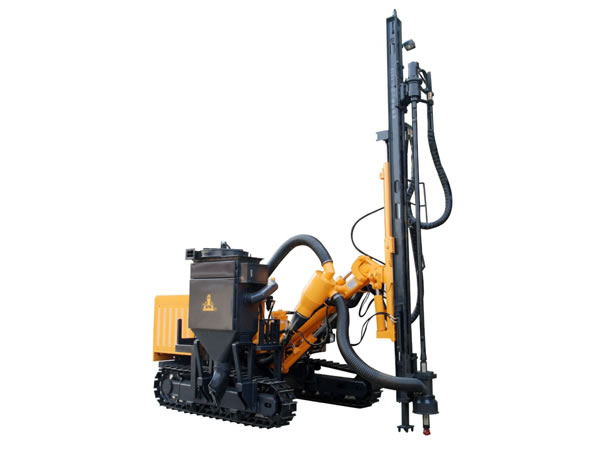

KGH4

Medium Pressure Eco-friendly Crawler Drilling Rig

This product has been discontinued and removed from our shelves.

Based on our previous product KG925 borehole drilling machine, we developed this KGH4 medium pressure eco-friendly crawler drilling rig. The new product comes with a dry type dust collector, and the drill bit diameter ranges from 80mm to 115mm. This crawler drill rig can drill blastholes (such as pre-splitting blasting hole) and anchor cable holes in horizontal, vertical and inclined directions. The attractive features of this blasthole driller like stable performance, wide application, high cost-effectiveness, makes our KGH4 medium pressure eco-friendly crawler drilling rig an ideal choice for medium and small mines.

Feature
1. The imported high-speed motor is used for the dust collecting system. The system is stable and efficient.
2. The guide rail is lengthened, and the first drill rod of the crawler drilling rig is 3m long.
3. Special treatment has been conducted on the walking system, making the system strong and durable.
4. The ultra-high rotating speed can reach 140r/min, making the drilling speed greatly accelerated.

Specifications

Rock hardness F = 6-20
Drill bit diameter φ80-115 mm
Drill depth 30 m
Walking speed 0~2.5 Km/h
Gradeability 25°
Min. ground clearance 290 mm
Engine YC4D80 (58kW, 2400rpm)
Overall dimension 5600×2700×2500 mm
Overall weight 5000 Kg
Working air pressure 0.7-1.7 MPa
Carriage length 3600 mm
Carriage dip angle Down 135°, up 50°, total 185°
Max. carriage swing angle Left 100°, right 45°, total 145°
Max. drill arm lateral swing angle Left 45°, right 45°, total 90°
Compensation length 900 mm
Rotating speed 0-140 rpm
Rotation torque 1200 N.m
Lifting force 25 KN
Drill rod diameter φ64 mm, φ76 mm (standard configuration)
Drill rod length 3000 mm

Recommend parts for the KGH3 crawler drilling rig
1. Drill bit: Φ90, Drill hammer: QCW930, Drill rod: Φ64mm
2. Drill bit: Φ105, Drill hammer: HD45S, Drill rod: Φ64mm
3. Drill bit: Φ115, Drill hammer: HD45A, Drill rod: Φ76mm

Recommend air compressor for the KGH3 crawler drilling rig
KAISHAN brand LGCY-13/13 Portable diesel screw compressor KAISHAN brand LGCY-15/13 Portable diesel screw compressor
