KGH3

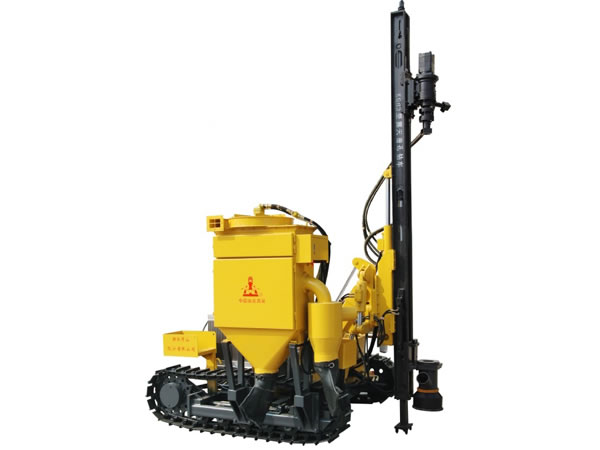

Low Pressure Eco-friendly Crawler Drilling Rig

This product has been discontinued and removed from our shelves.

The KGH3 low pressure eco-friendly crawler drilling rig is an update version of KY100 series product. Specifically, a dry type dust collecting device and speed reducer are added. The dust collecting device consists of a prefiltering device and a fine filtering device. The eco-friendly and high performance filtering material leads to high purification efficiency (99%).

Feature
1. Reliable hydraulic system

The oil cooling device is available in our KGH3 low pressure eco-friendly crawler drilling rig, thus the hydraulic oil's thermal influence to the whole system can be greatly eliminated. Premium hydraulic components are used for better stability and reliability.

2. Powerful engine
A double cylinder diesel engine is used for this crawler drill. Its tractive force and gradeability are both quite amazing.

3. Reliable hydraulic pump group
Two separated gear pumps are adopted for the oil supply. Their reliability and adaptability are both great, and the maintenance is also very convenient.

4. Flexible drill arm
The KGH3 low pressure eco-friendly crawler drilling rig comes with flexible mobile drill arms which can be adjusted by the oil cylinder to get proper drilling angle and the accurate height of horizontal hole. The expanded operating area has greatly enhanced the drilling machine's adaptability.

Specifications

Model KGH3
Rock hardness F = 6-20
Hole diameter Ф80-105mm
Economical drill depth 20m
Pressure 0.7-1.4Mpa
Air consumption 9-13m³/min
Rotating speed 0-120r/min
Rotation torque 980N.m
Lifting force 15000N
Propulsion type Hydro-Cylinder-Chain
Propulsion length each time 2000mm
Propulsion speed 280mm/s
Drill rod specification Φ60×3000mm
Gradeability 30°
Ground clearance 254mm
Walking speed 0-2km/h
Drill arm rising angles Down 35°, up 60°, total 95°
Drill arm swing function Not available
Carriage swing angle Left 11.5°, right 36.5°, total 48°
Carriage pitch angle Down 118.5°, up 23.5°, total 142°
Carriage compensation 900mm
Diesel engine YC2108 (33kW, 2200r/min)
Overall dimension (L×W×H) 4400×2200×2050mm
Total weight 3300kg
Note Pneumatic-hydraulic driving system, with dry-type dust collector and reducer

Recommend parts for the KGH3 crawler drilling rig
Drill bit: Φ90
Drill hammer: QCW930
Drill rod: Φ60×2000mm

Recommend air compressor for the KGH3 crawler drilling rig
KAISHAN brand LGCY-12/10 Portable diesel screw compressor KAISHAN brand LGCY-10/10 Portable diesel screw compressor KAISHAN brand LGCY-12/7 Portable diesel screw compressor
