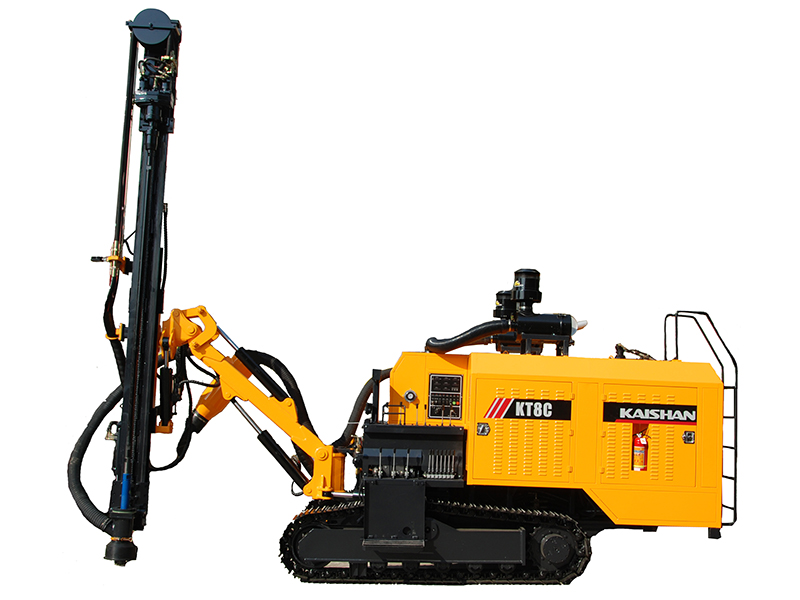

The KT8C integrated down the hole drill rig is a highly advanced piece of equipment that delivers outstanding power and energy-saving performance. The drilling device is particularly suited to the needs of small and medium open-cast mining, quarry, and infrastructure projects.
The two-terminal output of the single engine drives the screw host and hydraulic pump unit, providing a simplified structure for fast and convenient repairs.
The high air-pressure screw host satisfies the needs of high-efficiency drilling operations.

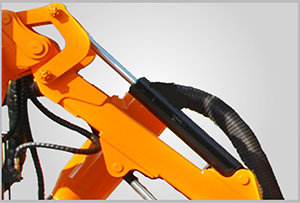

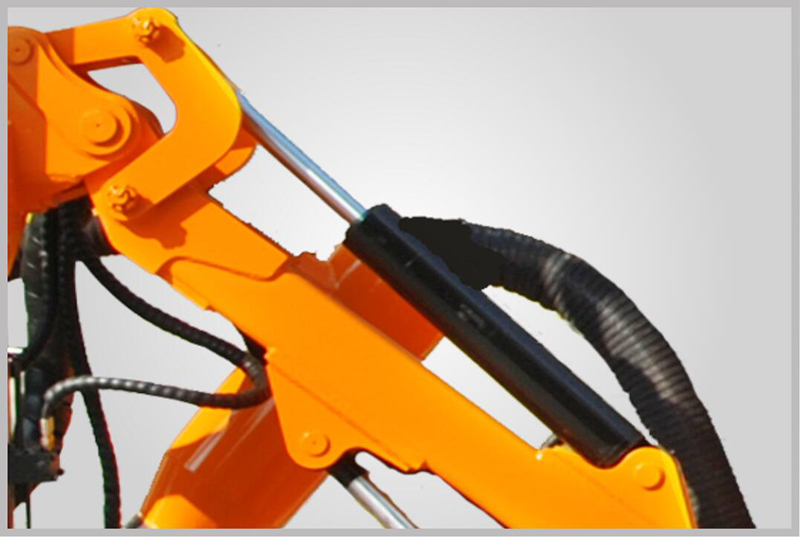

The derricking pitch mechanism is adopted with a larger pitch angle and greater smoothness.
|Drilling diameter||90-115 mm|
|Depth of economical drilling||30 m|
|Power of complete machine||194 kW|
|Diesel engine||Cummins QSC8.3-C260-30|
|Capacity of screw compressor||13 m3/min|
|Discharge pressure of screw compressor||17 bar|
|Outer dimensions (L×W×H)||8000×2300×3000 mm|

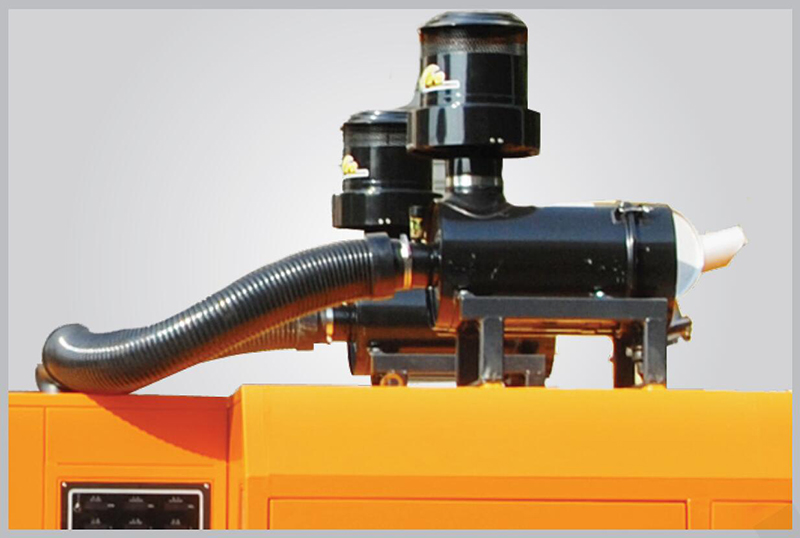

The efficient dust-collecting system reduces dust pollution in line with environmental standards.
Equipped with a Cummins China stage III engine, the drill rig meets national standards for emissions and environmental impact.
