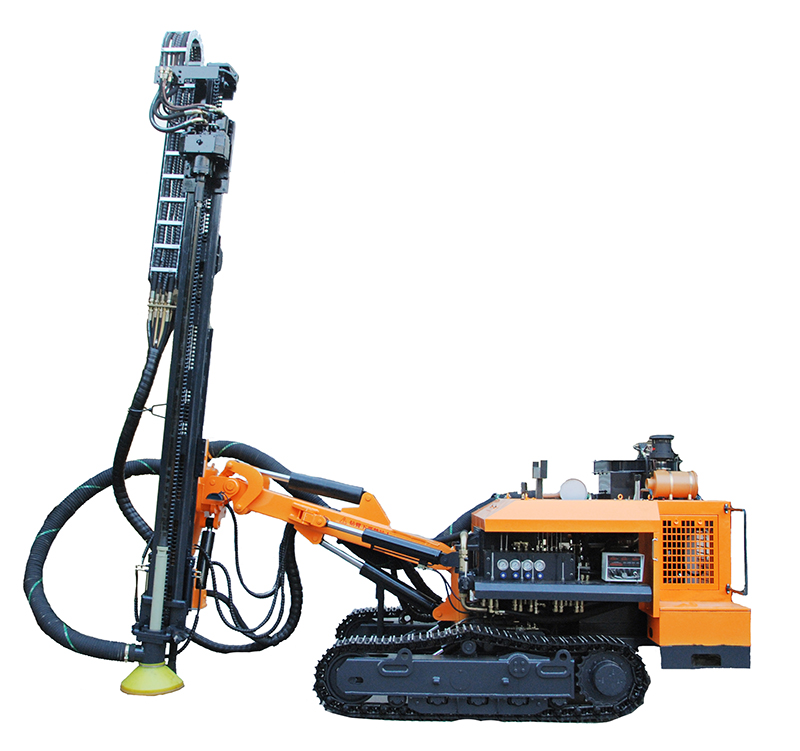

KG610/KG610H Surface DTH Drill Rig for Open Use

KG610/KG610H Surface DTH Drill Rig for Open Use

The KG610/KG610H surface down the hole drill rig is used for open pit mining and quarrying projects. The rig adopts a folding frame track and four-wheel drive. Track leveling and a plunger piston walking motor improves the working pressure and climbing capacity of the machine. The expanded pitch and lifting-arm hydraulic cylinder allow it to meet the limiting position requirements. A double-motor is installed to raise the rotary toque and revolving speed. The hydraulic cylinder and chain are expanded to raise the lifting force and reliability. The dust collector is enlarged to increase the effectiveness of the unit. A thickened profile folder is used for the housing, improving its intensity and rigidity. The additional ring makes handling and lifting more convenient.

The KG610H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters
Drilling diameter Φ105-202mm
Depth of economical drilling 40m
Feed stroke 4010mm
Method of Feed ：Oil cylinder-leaf chain
Supporting power ： Cummins QSB3.9-C125(92KW/2200r/min)

Technical Parameters
Model of drill rig KG610 KG610H
Weight of complete machine 7100KG 7600KG
Outer dimensions 6700×2250×2850mm 6700×2800×2850mm
Drilling hardness f=6-20
Drilling diameter Φ105-202mm
Depth of economical drilling 40m
Rotary speed 0-110rpm
Rotary torque 4500N·m
Lifting force 25KN
Method of Feed Oil cylinder-leaf chain
Feed stroke 4010mm
Travelling speed 0-4km/h
Climbing capacity ≤30°
Ground clearance 440mm
Tilt angle of beam Down:135°, up: 50°, total: 185° /Down:135°, up: 50°, total: 185°
Swing angle of beam Left: 40°, right: 40°, total: 80° /Left: 40°, right: 40°, total: 80°
Pitch angle of drill boom Down: 55°, up: 25°, total: 80° /Down: 55°, up: 25°, total: 80°
Swing angle of drill boom Left: 45°, right: 45°, total: 90° /Left: 45°, right: 45°, total: 90°
Leveling angle of track ±8°
Compensation length of beam 900mm
Supporting power QSB3.9-C125(92KW/2200r/min)/Cummins QSB3.9-C125(92KW/2200r/min)
DTH hammer K5
Drilling rod Φ76×3m or Φ89×3m
Air consumption 15-26m³/min
Maximum height of horizontal hole 2850mm
Minimum height of horizontal hole 900mm
Detail features

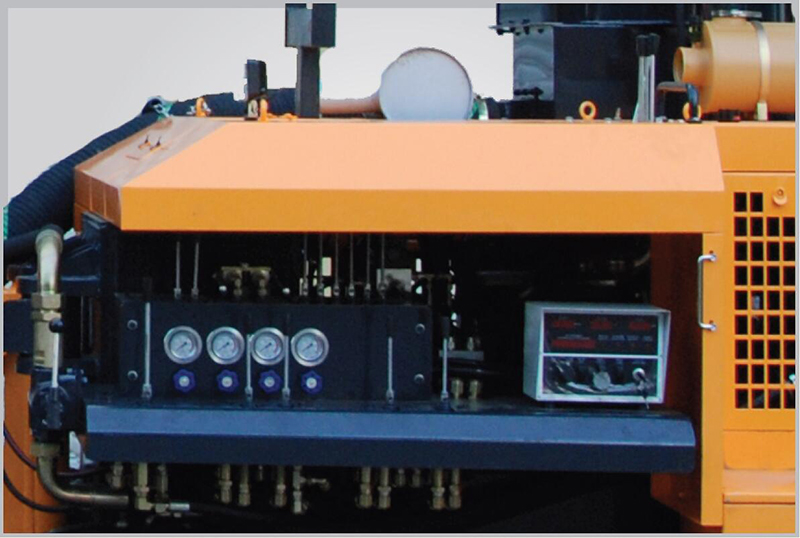

  • Easy Used Control Panel
    Easy Used Control Panel

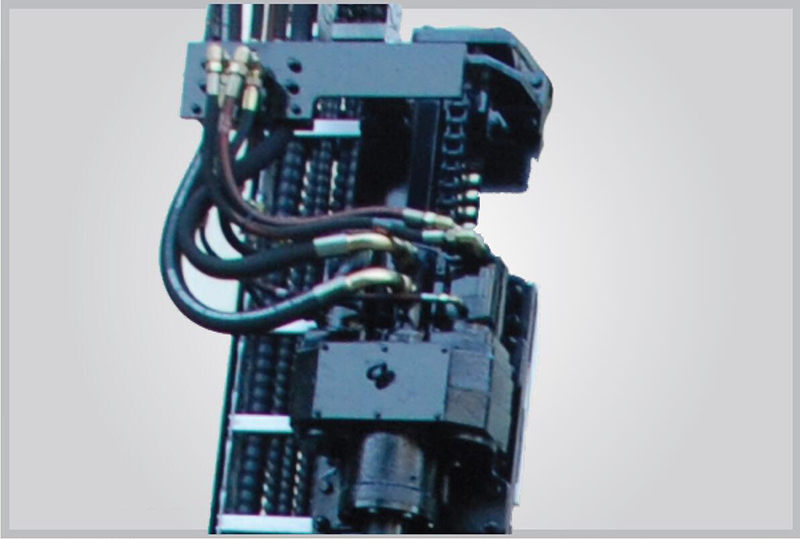

  • High torque gyrator
    High torque gyrator

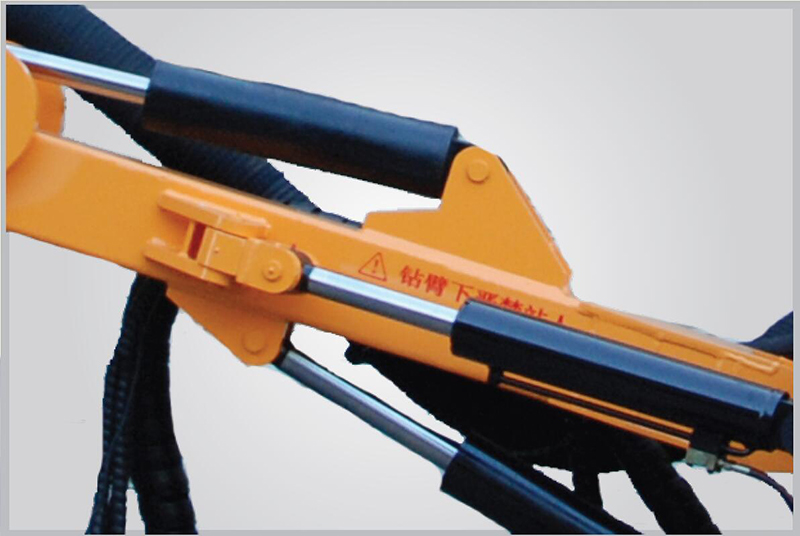

  • Stable hydraulic system
    Stable hydraulic system

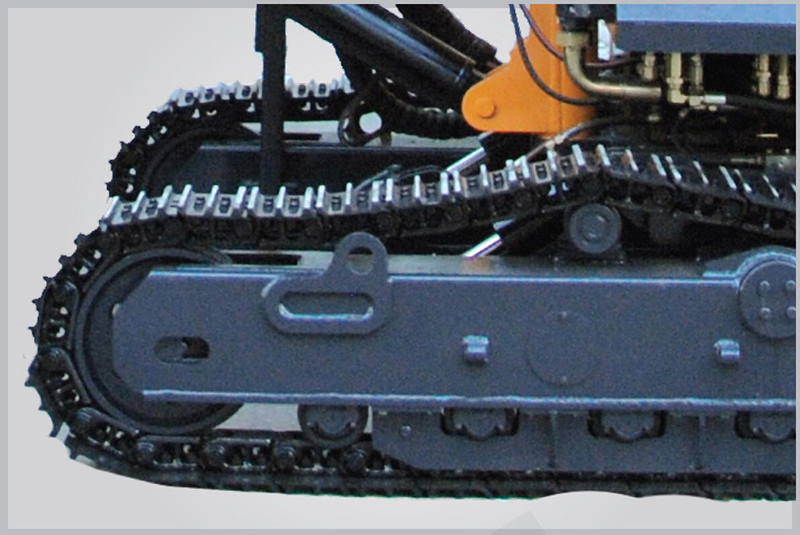

  • Steel track adaptable to all terrains
    Steel track adaptable to all terrains

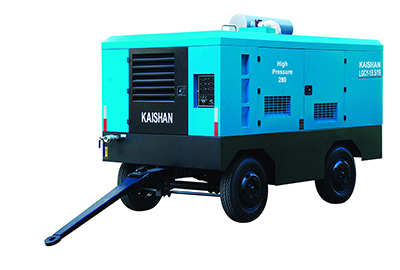

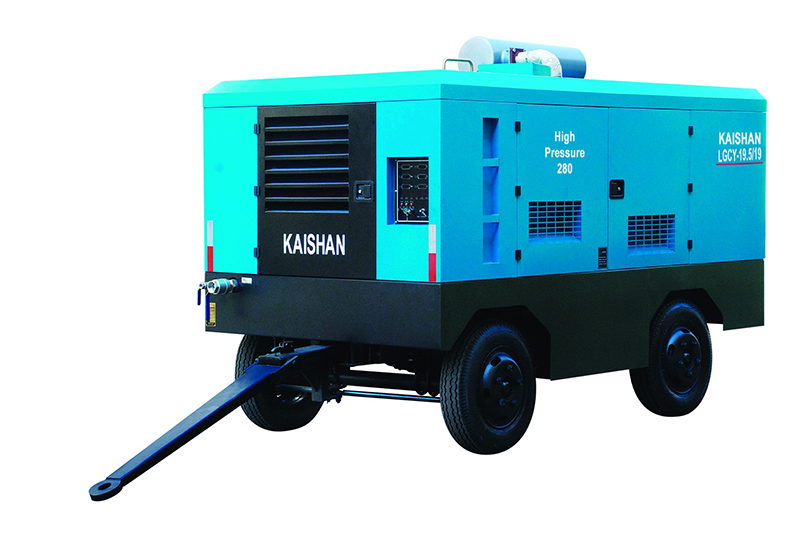

  • Screw Air Compressor
    Air Compressor
