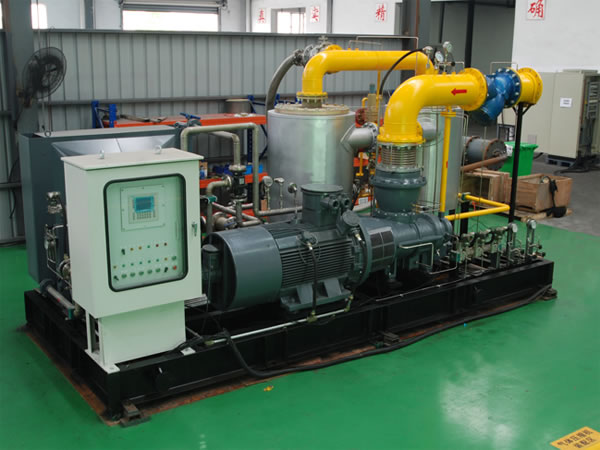

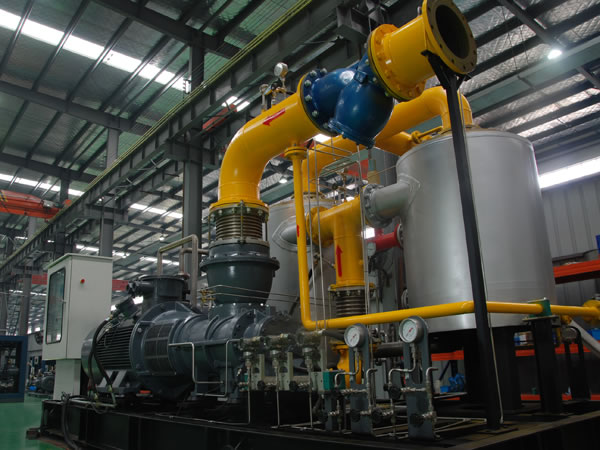

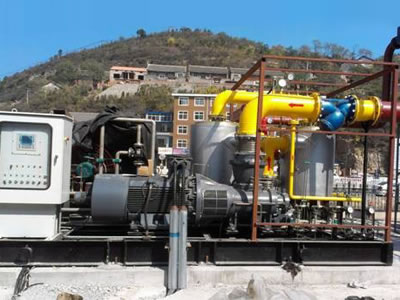

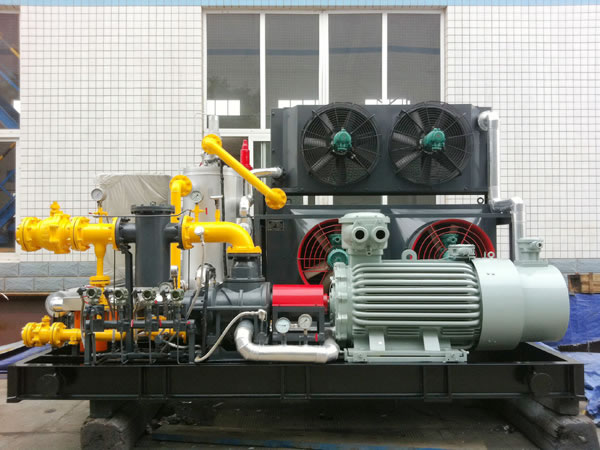

Natural Gas Compressor

The core technology of our natural gas compressor is from Dr. Tang with our R&D center in North America. The Y-4 natrual gas supercharger comes with highly energy-saving design. It is manufactured with advanced techniques and tested by world leading equipment. The efficient quality control system has ensured the consistent quality of our products. Besides our natural gas compressor is efficient, energy-saving, and produces limited noise. The product reliability has reached the highest level around the world.

The minimum gas inlet pressure could reach -40KPa, while the gas discharging pressure is 0.3-1.2 barg. The gas discharging capacity is 3-252m³/min. You can choose the proper type from the product list below.

Feature
1. This natural gas compressor is a piece of highly automatic gas compressing equipment. It doesn't need human monitoring.
2. Precise synchromesh gear is used for the driving system, giving rise to higher efficiency and better reliability.
3. A number of VI (visual identity) design are available.
4. As an energy-saving gas compressing machine on different working conditions. Comparing with roots blower, our natural gas compressor can save 35% energy at most.

Application
Gas station, coalbed gas extraction and conveying, shale gas pressurization, gas burning with air blowing, oxidation sweetening, and so on.

Parameter

Type Rated rotation speed Max. rotation speed Rated capacity (m³/min) Max. capacity (m³/min) Discharge pressure of single stage (barg) Shaft power (Rated- rotation speed, 1.2barg discharge pressure, kW) Driving method
Direct con- nection Belt driving
B104 2950 9100 3 9 0.3-1.2 6
B124 2950 7600 5 13 0.3-1.2 11
B140 2950 7400 7 18 0.3-1.2 15
B158 2950 7200 10 26 0.3-1.2 21
B178 2950 6400 15 33 0.3-1.2 32
B196 2950 6300 20 43 0.3-1.2 40
B224 2950 5500 30 56 0.3-1.2 63
B247 2950 5000 40 69 0.3-1.2 83
B280 2950 4400 59 89 0.3-1.2 123
B311 2950 3900 81 109 0.3-1.2 168
B344 2950 3800 109 144 0.3-1.2 227
B382 2950 3700 152 193 0.3-1.2 316
B408 2950 3700 250 252 0.3-1.2 412
