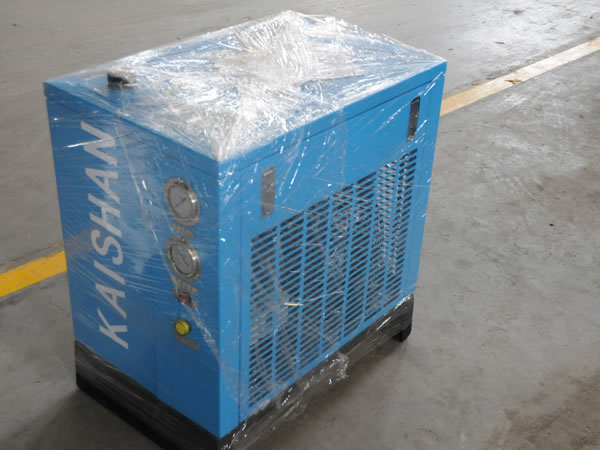

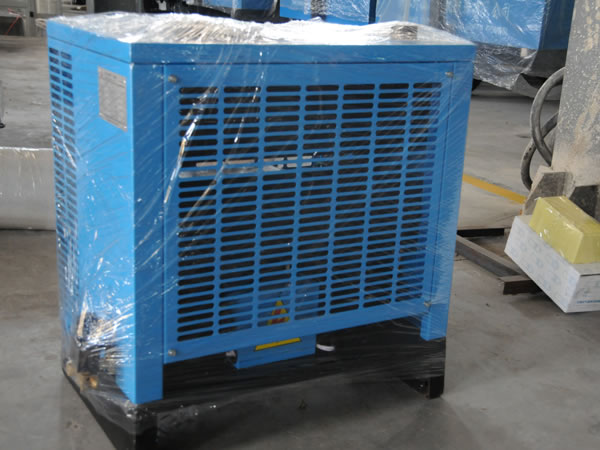

Refrigerated Air Dryer

The refrigerated air dryer comes in two types including normal temperature refrigeration air dryer and high temperature refrigeration air dryer. Both of the two types of refrigerated dryer adopt the air cooling technique. Premium components have been used for the products. You can see the features, parameters and models below.

Feature
1. Our refrigerated air dryer comes with a high temperature enclosed type air compressor or normal temperature enclosed type air compressor from famous companies like PERFORMER and MANEUROP from France, and BITZER and COPERLAND from Germany. The compressor features stable rotation, low noise, energy saving, and long service life.

2. The condenser comes with quality and highly efficient threaded pipe which has high heat transmission coefficient. The cylinder is made of stainless steel or zinc-plated steel, avoiding the secondary pollution to the compressed air.

3. All the refrigeration control elements of the refrigerated air dryer come from advanced companies like DANFOSS from Denmark, and ALCO and SPORLAN from the United States. These elements have the throttling and pressure reducing functions of a thermal expansion valves, the energy regulating function of a hot gas by-pass valve, the refrigerant oil protection function of an oil separator, and the refrigerant high/low pressure protection function.

4. The gas-liquid separation is conducted by a gas-liquid separator which combines cyclone separation technique and stainless steel mist catcher. The separation performance is great, and the water won't evaporate again, ensuring good drying performance can be achieved. This refrigerated air dryer has better drying performance than cyclone separator, and lower use-cost than gas-liquid filtering technique. The cost-effectiveness is very good.

Normal temperature air dryer (Air cooled)
Air inlet temperature ≦ 45℃
Cooling type: air cooling
Ambient temperature ≦ 38℃
Pressure dew point: 2-10℃
Inlet pressure: 0.96-1.0MPa
Pressure loss≦ working pressure 5%

Normal temperature air dryer (Air cooled)
Model Air process load Voltage Refrige- rating power Fan motor power Air connection diameter Air volume N.W Dimension
m³/min V HP W N, m³/h Kg mm
KSAD-0.5SF 0.65 220 1/4 1×55 RC1/2" 965 45 580×350 ×525
KSAD-1SF 1.2 220 1/3 1×90 RC1" 1890 70 640×380 ×545
KSAD-2SF 2.5 220 3/4 1×55 RC1" 965 110 650×430 ×670
KSAD-3SF 3.6 220 1 1×150 RC1" 3110 130 850×450 ×670
KSAD-4.5SF 5 220 1.5 1×240 RC1½" 5180 150 1000×490 ×700
KSAD-6SF 6.8 220 2 2×150 RC1½" 6220 160 1050×550 ×740
KSAD-8SF 8.5 220 2.5 2×195 RP2" 8470 200 1200×530 ×916
KSAD-10SF 10.9 380 3 2×195 RP2" 8470 250 1320×530 ×916
KSAD-12SF 12.8 380 3 2×195 RP2" 8470 300 1100×620 ×1426
KSAD-15SF 16 380 3.5 2×195 DN65 8470 320 1500×780 ×1666
KSAD-20SF 22 380 4.2 2×190 DN65 8470 420 1540×840 ×1610
KSAD-25SF 26.8 380 5.3 2×250 DN80 10560 550 1610×860 ×1870
KSAD-30SF 32 380 6.7 2×250 DN80 10560 650 1610×920 ×1860
KSAD-40SF 43.5 380 8.3 3×250 DN100 15640 750 260×960 ×1863
KSAD-50SF 53 380 10 3×250 DN100 18540 830 2240×960 ×1980
KSAD-60SF 67 380 13.3 3×450 DN125 18000 1020 2360×1060 ×1930
KSAD-80SF 90 380 20 4×550 DN125 40000 1300 2440×1490 ×1980

High temperature air dryer (Air cooled)
Air inlet temperature ≦80℃
Cooling type: air cooling
Ambient temperature ≦38℃
Pressure dew point: 2-10℃
Inlet pressure: 0.96-1.0MPa
Pressure loss ≦ working pressure 5%

High temperature air dryer (Air cooled)
Model No. Air process load Voltage Refrige- rating power Fan motor power Air connection diameter Air volume N.w Dimension
M³/min V HP W N, m³/h Kg mm
KSAD-0.5HF 0.65 220 1/4 1×55 RC1/2" 965 45 580×350 ×525
KSAD-1HF 1.2 220 1/3 1×90 RC1" 1890 70 640×380 ×545
KSAD-2HF 2.5 220 3/4 2×60 RC1" 1930 140 845×570 ×750
KSAD-3HF 3.6 220 1 2×150 RC1" 6220 160 1020×500 ×760
KSAD-4.5HF 5 220 1.5 4×90 RC1½" 7560 180 1000×500 ×960
KSAD-6HF 6.8 220 2 4×150 RC1½" 12440 210 1100×640 ×1020
KSAD-8HF 8.5 220 2.5 4×195 RP2" 16940 250 1200×350 ×1220
KSAD-10HF 10.9 380 3 4×195 RP2" 16940 270 1300×650 ×1290
KSAD-12HF 12.8 380 3 4×195 RP2" 16940 330 1440×1140 ×1290
KSAD-15HF 16 380 3.5 4×195 DN65 16940 360 1560×1160 ×1404
KSAD-20HF 22 380 4.2 4×190 DN65 16940 460 1640×1240 ×1583
KSAD-25HF 26.8 380 5.3 4×250 DN80 21120 600 1730×1310 ×1618
KSAD-30HF 32 380 6.7 4×250 DN80 21120 720 1810×1410 ×1688
KSAD-40HF 43.5 380 8.3 6×250 DN100 31680 870 2360×1460 ×2100
KSAD-50HF 53 380 10 6×250 DN100 31680 970 2360×1560 ×2000
KSAD-60HF 67 380 13.3 7×460 DN125 42000 1200 2460×1800 ×2160
KSAD-80HF 90 380 20 8×550 DN125 80000 1460 2540×1900 ×2200
