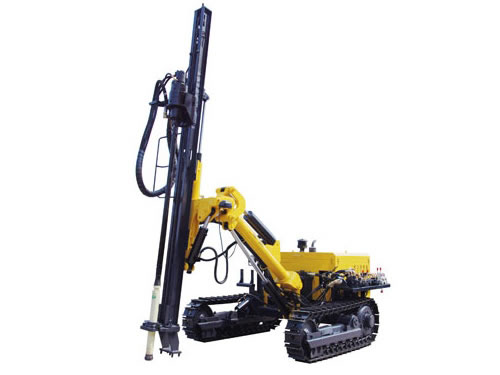

KY140A/D

High Pressure Crawler Drilling Rig

Our KY140A/D high pressure crawler drilling rig is well designed for various working environments. Its working performance has been recognized by many customers.

Feature
1. Safe and stable walking mechanism

This kind of rock drilling machine has low barycenter and large ground clearance, so it can walk on bumpy round easily. The gradeability is strong and the fault rate is quite low, making the high pressure crawler drilling rig suitable for bad working environment. No additional air compressor is needed for walking.

2. Powerful driving system
A famous brand four-cylinder is adopted, and its driving power is super high. A patented air in-flow adjuster is applied to the diesel engine. The prefilter, fuel filter, and filtering paper make an excellent combination, which has greatly enhanced the environmental adaptability of this crawler drill and the service life of the engine.

3. Powerful driving and rotating mechanisms
The driving mechanism our this powerful drilling machine consists of a hydraulic oil cylinder and fall block. The lifting force of our high pressure crawler drilling rig can reach 20KN. By adjusting the pressure adjusting valve on the driving regulating valve, you can achieve a proper driving force.

Specifications

High pressure crawler drilling rig
Model KY140A/D
Rock hardness F=6-20
Hole diameter Ф105-140mm
Economic drilling depth 25m
Pressure 1.0-2.4Mpa
Air consumption ≥15m³/min
Rotating speed 0-63r/min
Lifting capacity 20 000N
Propulsion type Hydro-Cylinder-Chain
Propulsion length 3000mm
Drill rod specification (mm) Φ76x3000mm/Φ89x3000mm
Gradeability 30°
Ground clearance 320mm
Walking speed 2km/h
Drill arm rising angle Down 15° Up 50° total 65°
Drill arm swing angle Left 45° Right 45° total 90°
Carriage swing angle Left 50° Right 50° total 100°
Carriage pitch angle 180°
Carriage compensation 1200mm
Engine YC4D80 (58KW) 45KW (380V/220V)
Overall dimension (L*W*H) 5850x2250x2020 (mm)
Total weight 5500kg
Note Pneumatic-Hydraulic driving mechanism

Recommended spare parts for KY140A/D

Drill bit diameter 115mm
Drill rod (Diameter×L) Φ 76×3000mm
Drill hammer HD45A

Recommended air compressor for KY140A/D
LGCY-18/17 Portable diesel screw compressor LGCY-22/20 Portable diesel screw compressor LGCY-15/13 Portable diesel screw compressor
