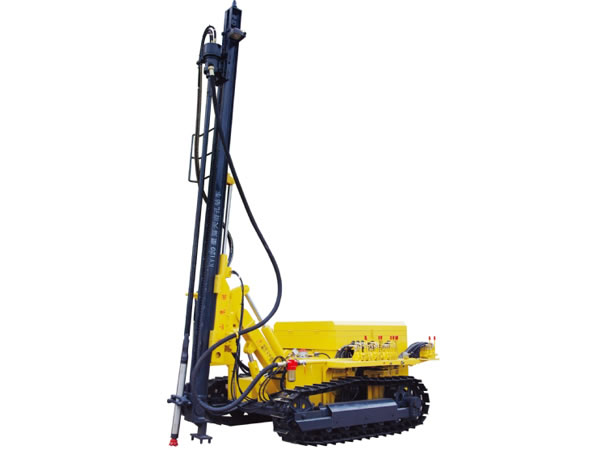

KY120

Medium Pressure Crawler Drilling Rig

Our KY120 medium pressure crawler drilling rig is a kind of well designed mining equipment. See the details below, and contact us if you are interested in our product.

Feature
1. Humanization design

The rocker arm type walking operating mechanism of this borehole drilling machine can be operated at its side and back, so the crawler drill is typically suitable for running on mountain roads. The Specially designed casing is beautiful and easy for repairing.

2. Flexible drill arm
The movable drill arm can adjust the drilling angle and hole's height by controlling the stretching length of the oil cylinder. Thus the medium pressure crawler drilling rig can drill holes in a wider range with better drilling performance.

3. Reliable hydraulic system
An oil cooling device is added to reduce the oil's thermal influence on the entire hydraulic system.

Specifications

Model KY120 Medium pressure crawler drilling rig
Rock hardness F = 6-20
Hole diameter Ф80-115mm
Economical drilling depth 25m
Pressure 0.7-1.4Mpa
Air consumption ≥13m³/min
Rotating speed 0-65r/min
Lifting capacity 17000N
Drill rod specification Φ64×3000mm/Φ76×3000mm
Gradeability 30°
Ground clearance 254mm
Walking speed 2km/h
Drill arm rising angles Down 35°, Up 60°, Total 95°
Drill arm swing angle /
Carriage swing angle Left 11.5°, Right 36.5°, Total 48°
Carriage pitch angle Down 118.5°, Up 23.5°, Total 142°
Carriage compensation 900mm
Overall dimension (L×W×H) 5100×2030×2020(mm)
Total weight 3300kg
Note Pneumatic-hydraulic driving mechanism

Recommended spare parts for KY120

Drill bit diameter 90mm 105mm 115mm
Drill rod (Diameter×L) Φ 64×3000mm Φ 64×3000mm Φ 76×3000mm
Drill hammer CW930 HD45S HD45A

Recommended air compressor
LLGCY-13/13 Portable diesel screw compressor LGCY-15/13 Portable diesel screw compressor
